Acme Single Camber Roof Tile
Natural clay, machine made, single cambered plain tile offering crisp, contemporary lines and the warmth and character of clay at an affordable price. Available in a variation of 8 finishes making make the Acme single camber a fantastic option for any roofing project, whether it be residential or commercial.
Product Variants

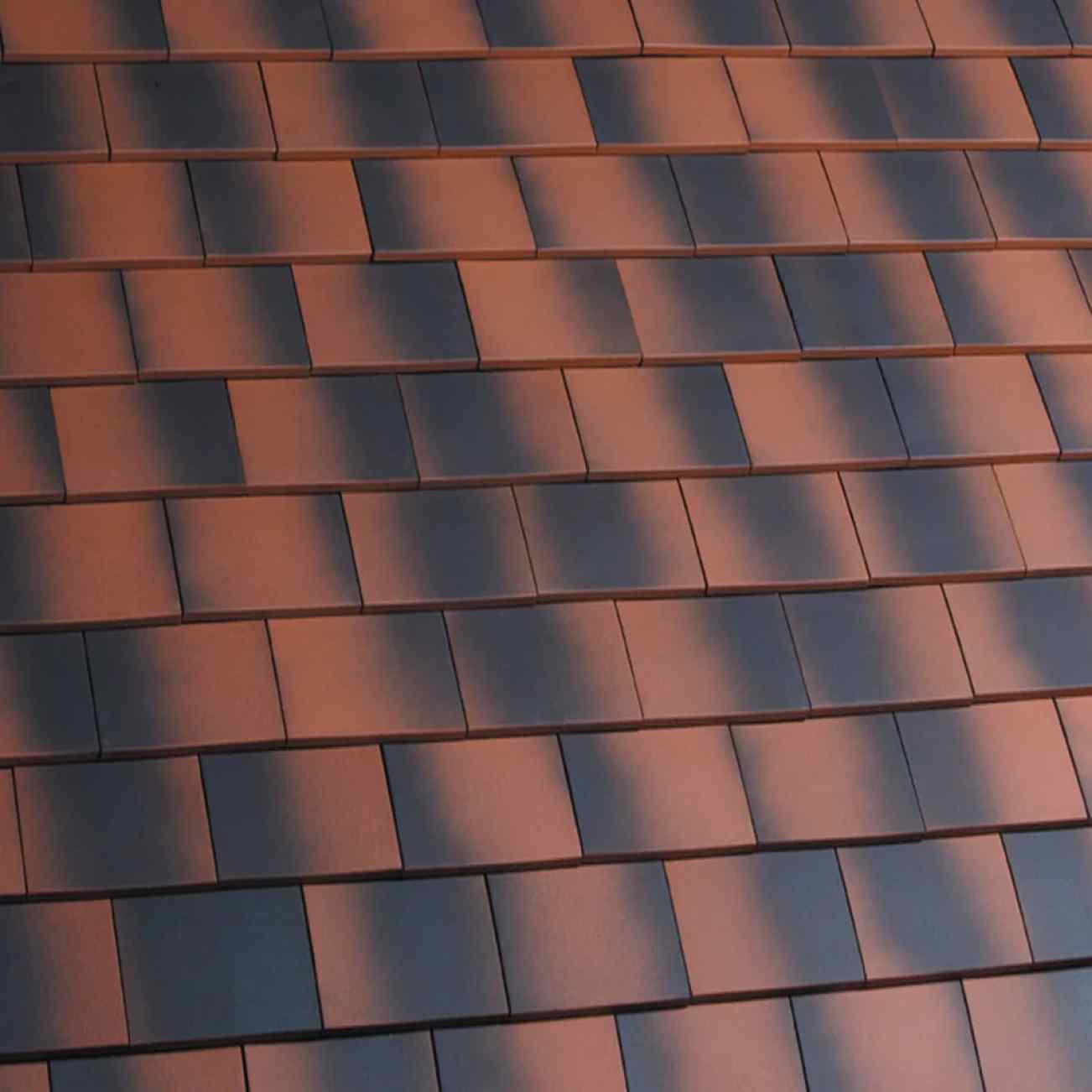

Century

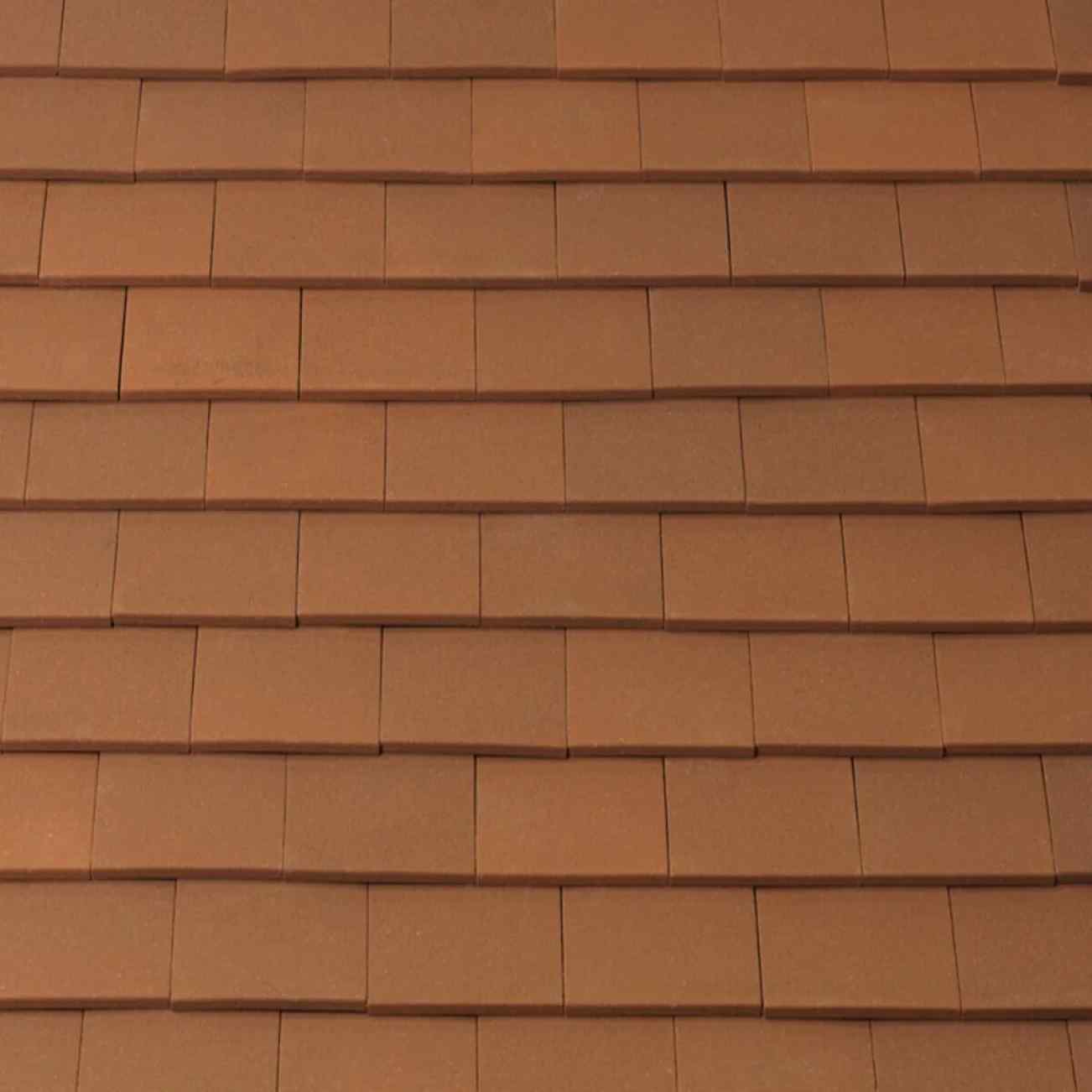

Farmhouse Brown Sandface

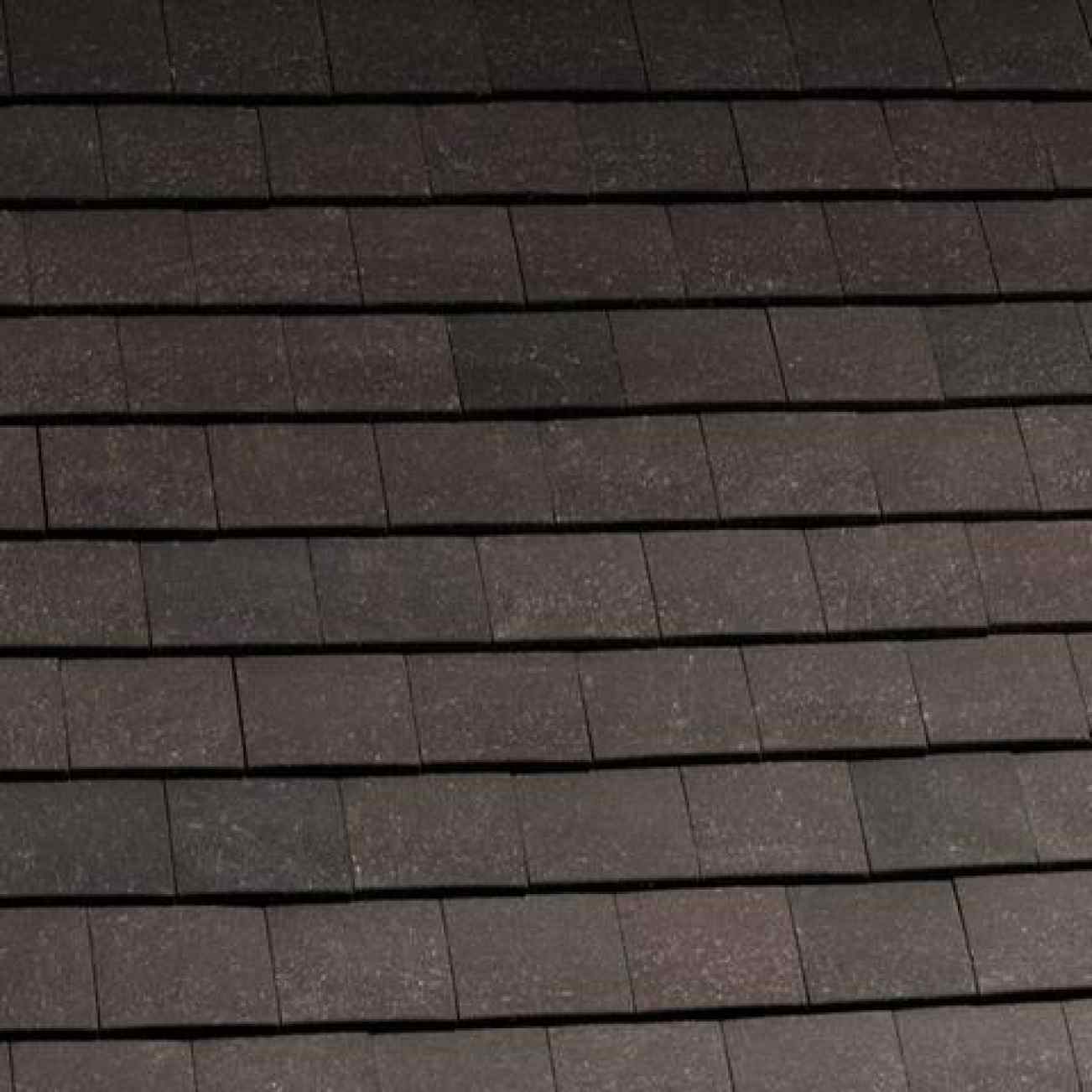

Grey Sandface

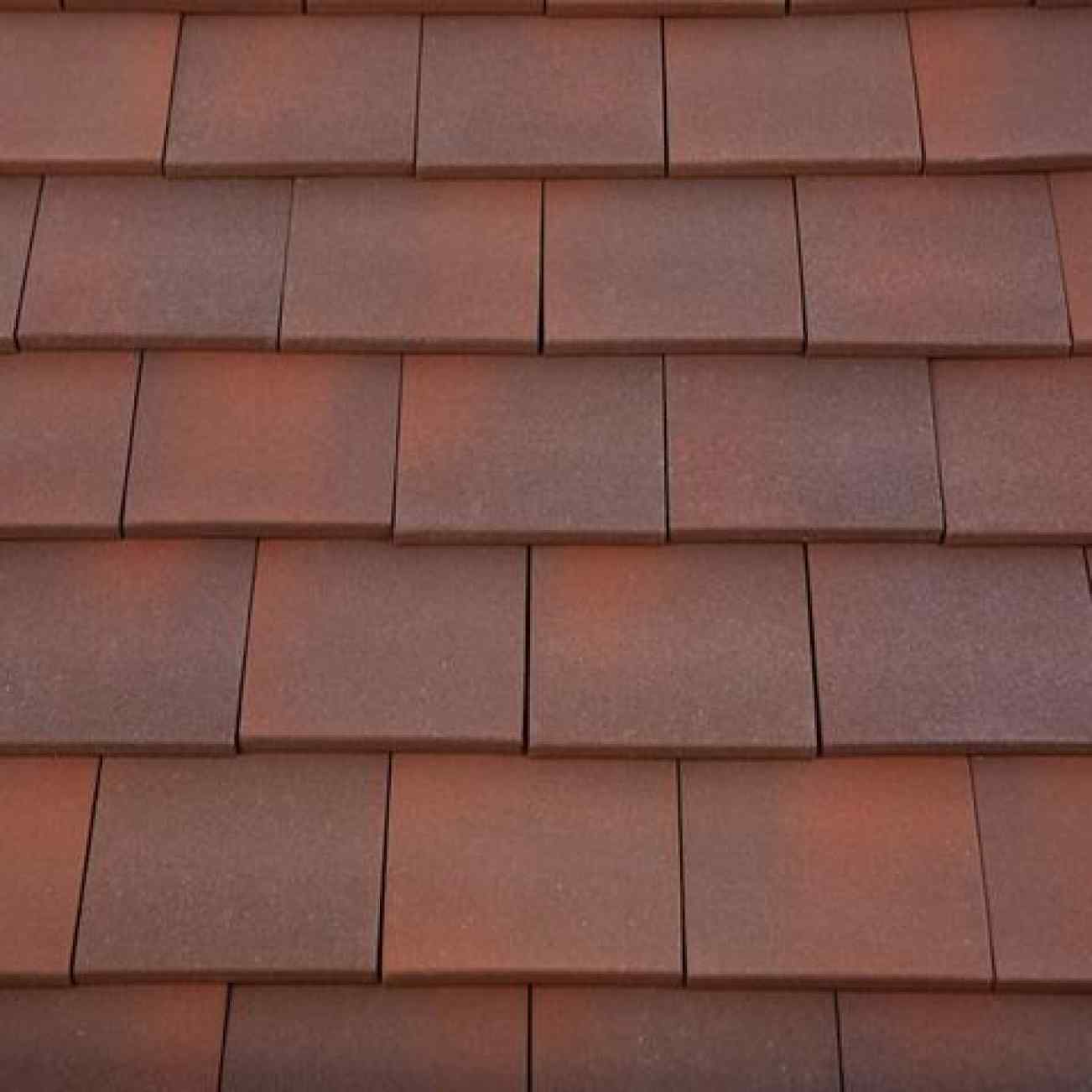

Heather Blend

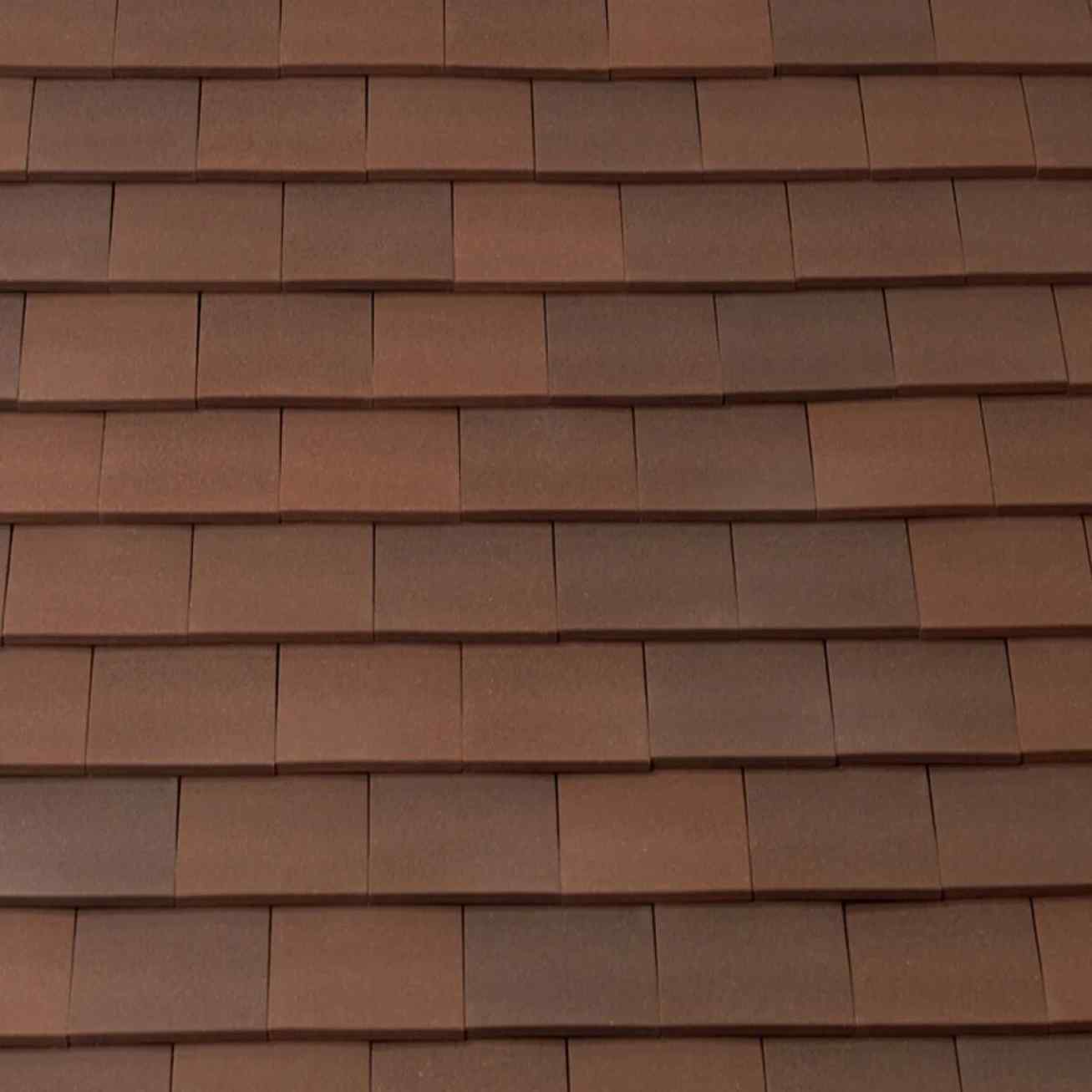

Heather Sandface

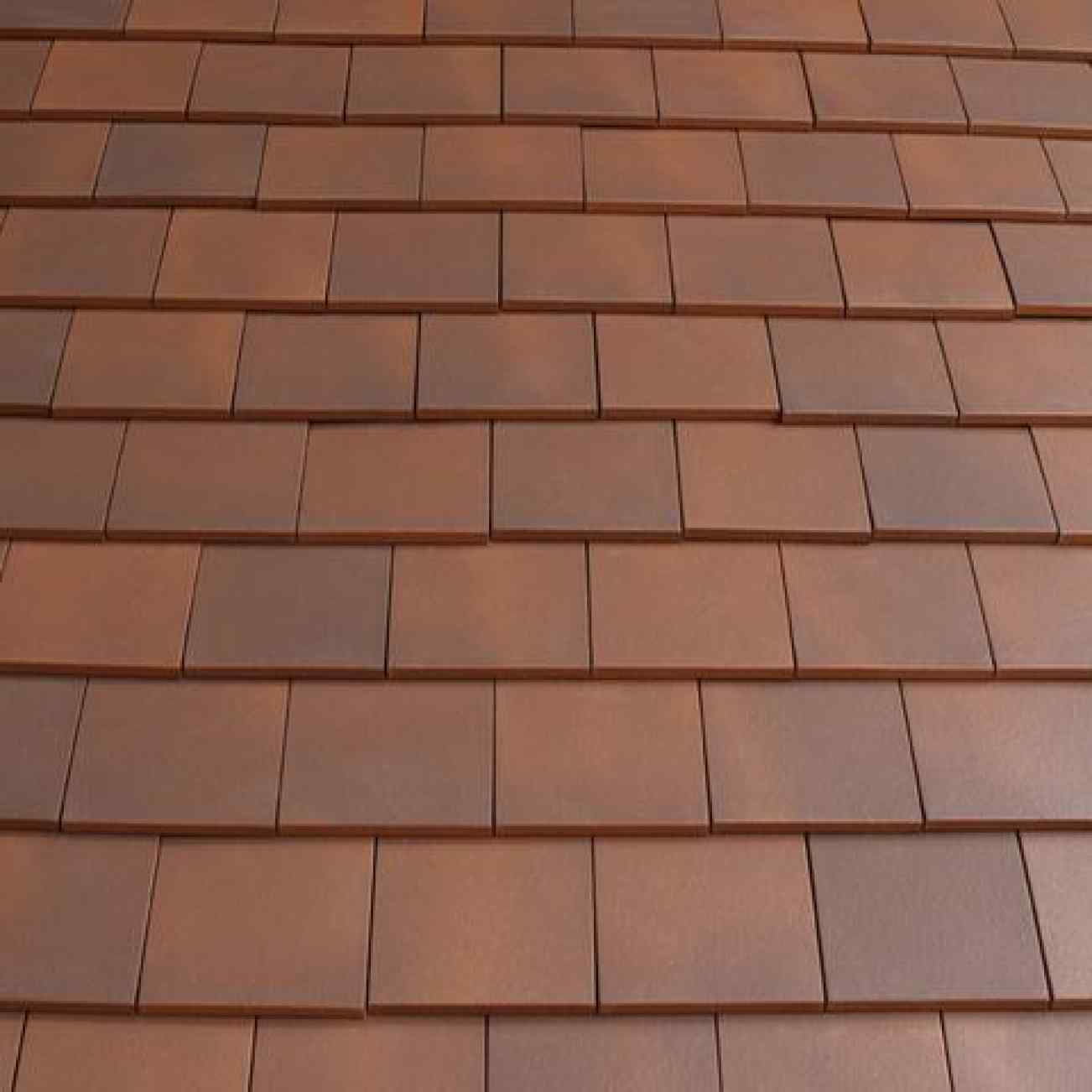

Mixed Brindle

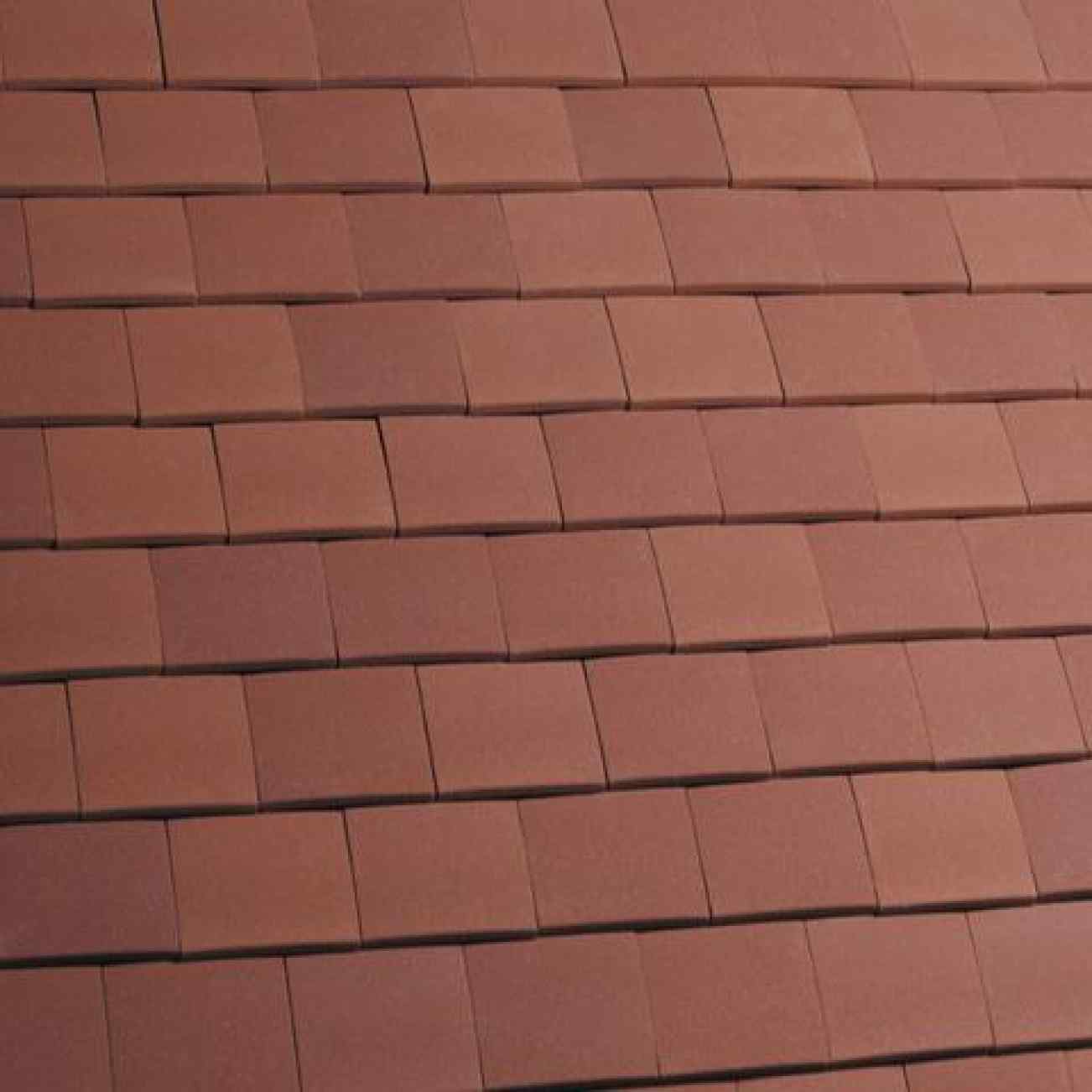

Red Sandface

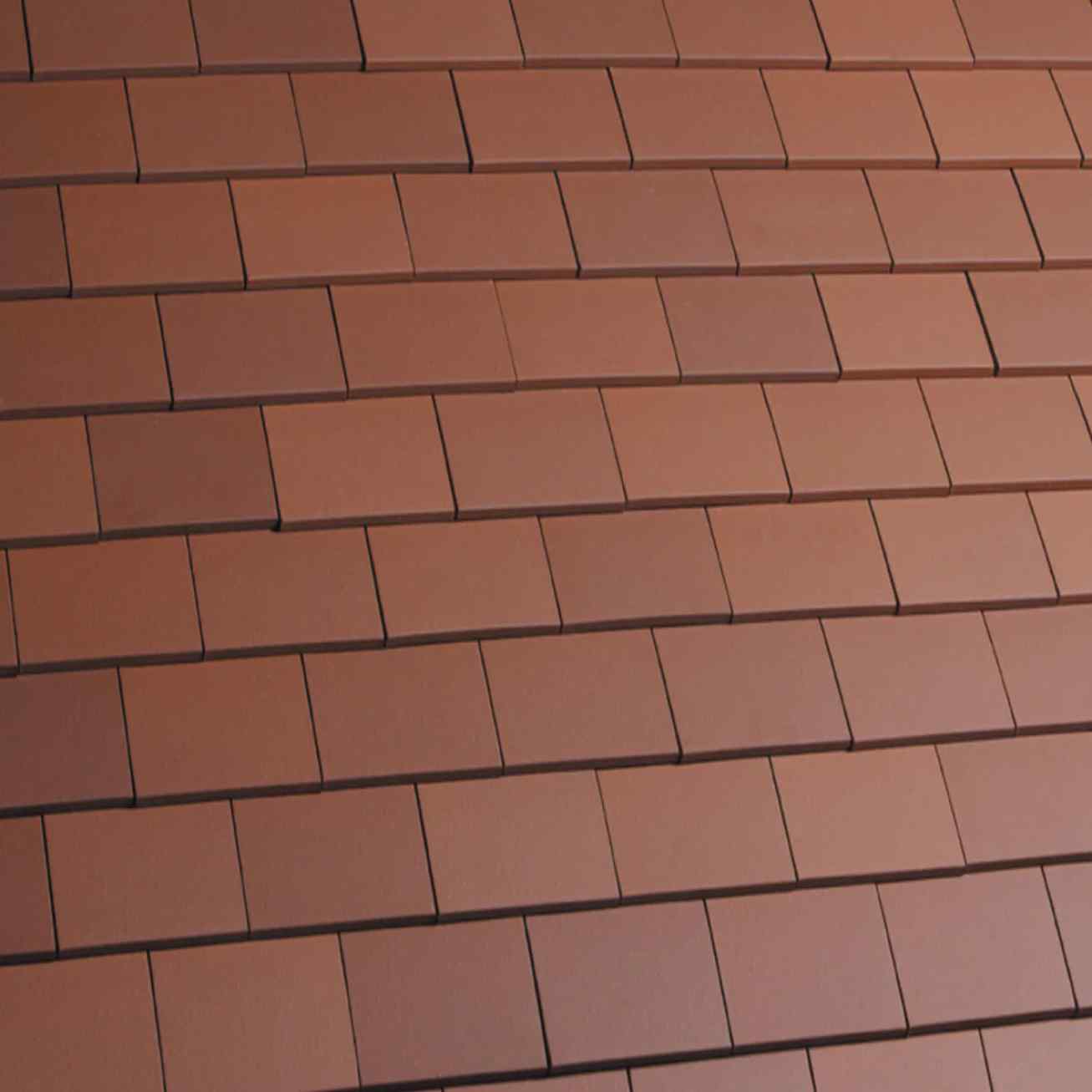

Red Smooth
Product Technical Data:
| Size of tile: | 265mm x 165mm |
| Minimum pitch:* | 30° |
| Maximum pitch: | 90° |
| Minimum headlap: | 65mm (roof), 35mm (vertical) |
| Maximum gauge: | 100mm (roof), 115mm (vertical) |
| Tile thickness: | 11mm (nominal) |
| Cover width: | 165mm (nominal) |
| Covering capacity (net): | 60 tiles/m2 at 100mm gauge (roof), 53 tiles/m2 at 115mm gauge (vertical) |
| Weight of tiling (approx.): | 64kg/m2 (0.72 kN/m2) at 100mm gauge (roof), 56kg/m2 (0.57 kN/m2) at 115mm gauge (vertical) |
| Battens required (net): | 10.0 lin.m/m2 at 100mm gauge (roof), 8.7 lin.m/m2 at 115mm gauge (vertical) |
| Batten size recommended: | 38mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534) |
| Tile nails: | 38mm x 2.65mm |
| Authority: | BS EN 1304 |
