Duo Edgemere Roof Tile
The Marley Duo Edgemere Interlocking Slate is a thin leading edge, concrete roof tile with a slate like appearance. The Duo Edgemere is a slim line version of the Marley Modern tile offering the perfect combination of a sleek, attractive appearance with a surprisingly attractive price. The Duo Edgemere features a 'mock bond' to give the impression of two smaller slates.
Product Variants

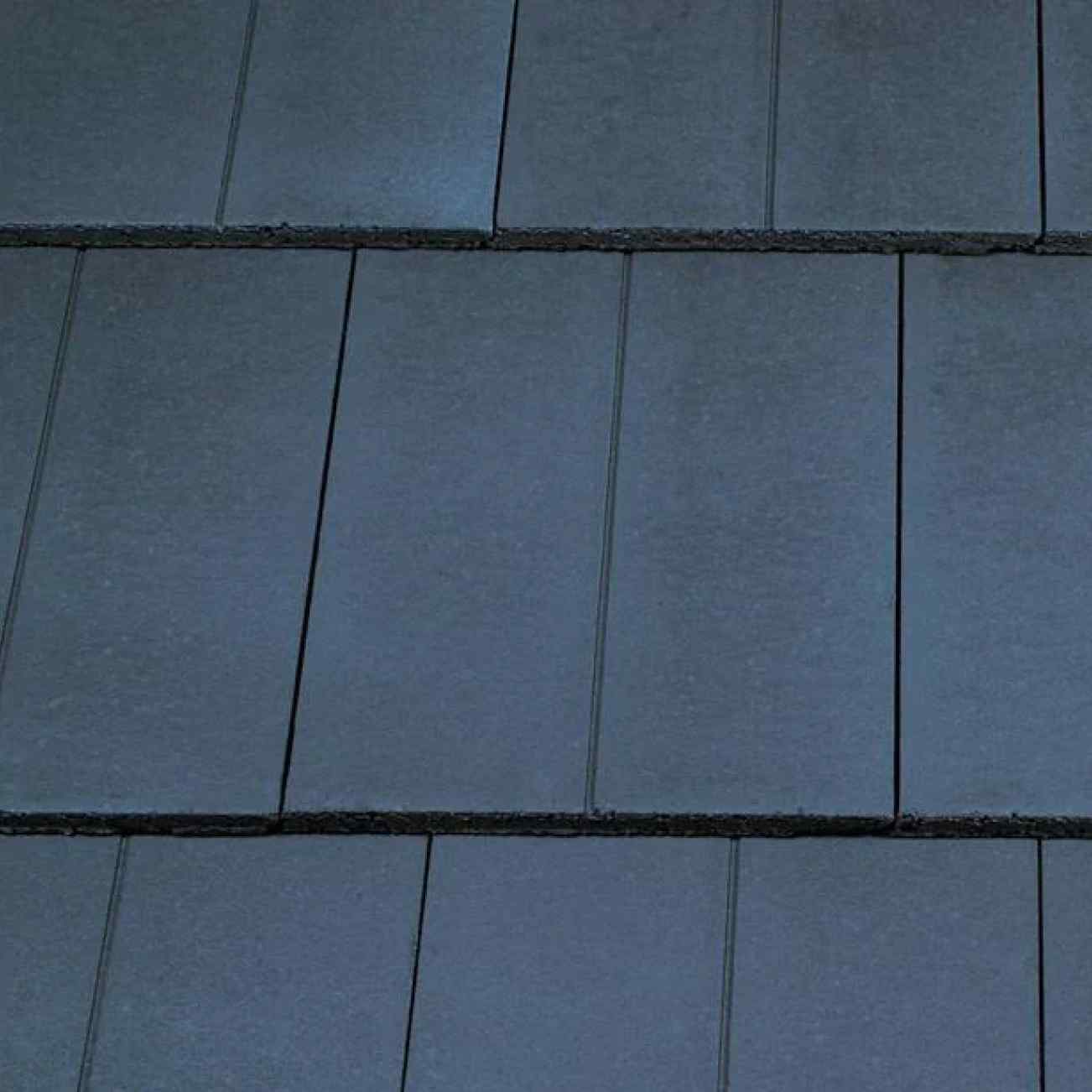

Smooth Grey

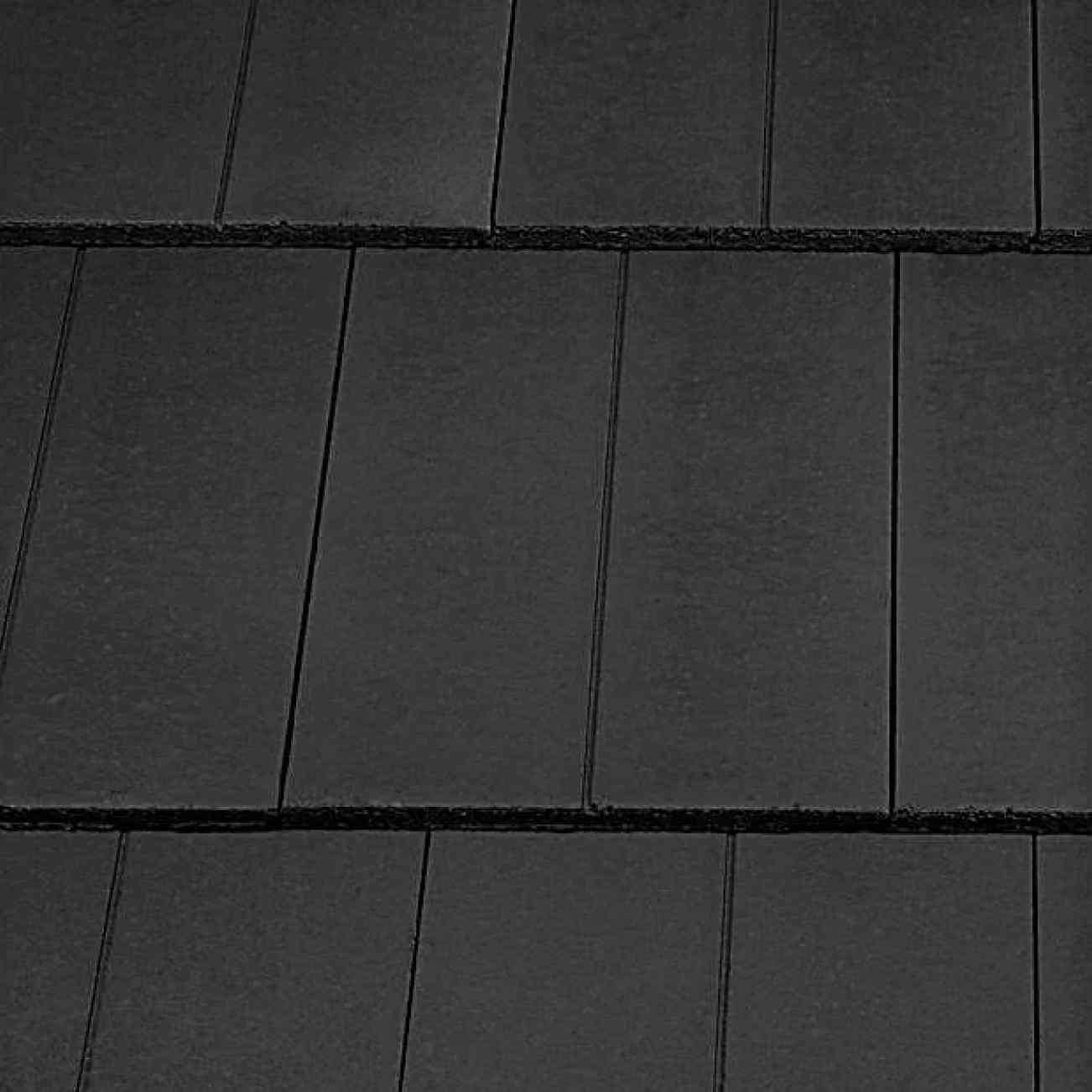

Anthracite

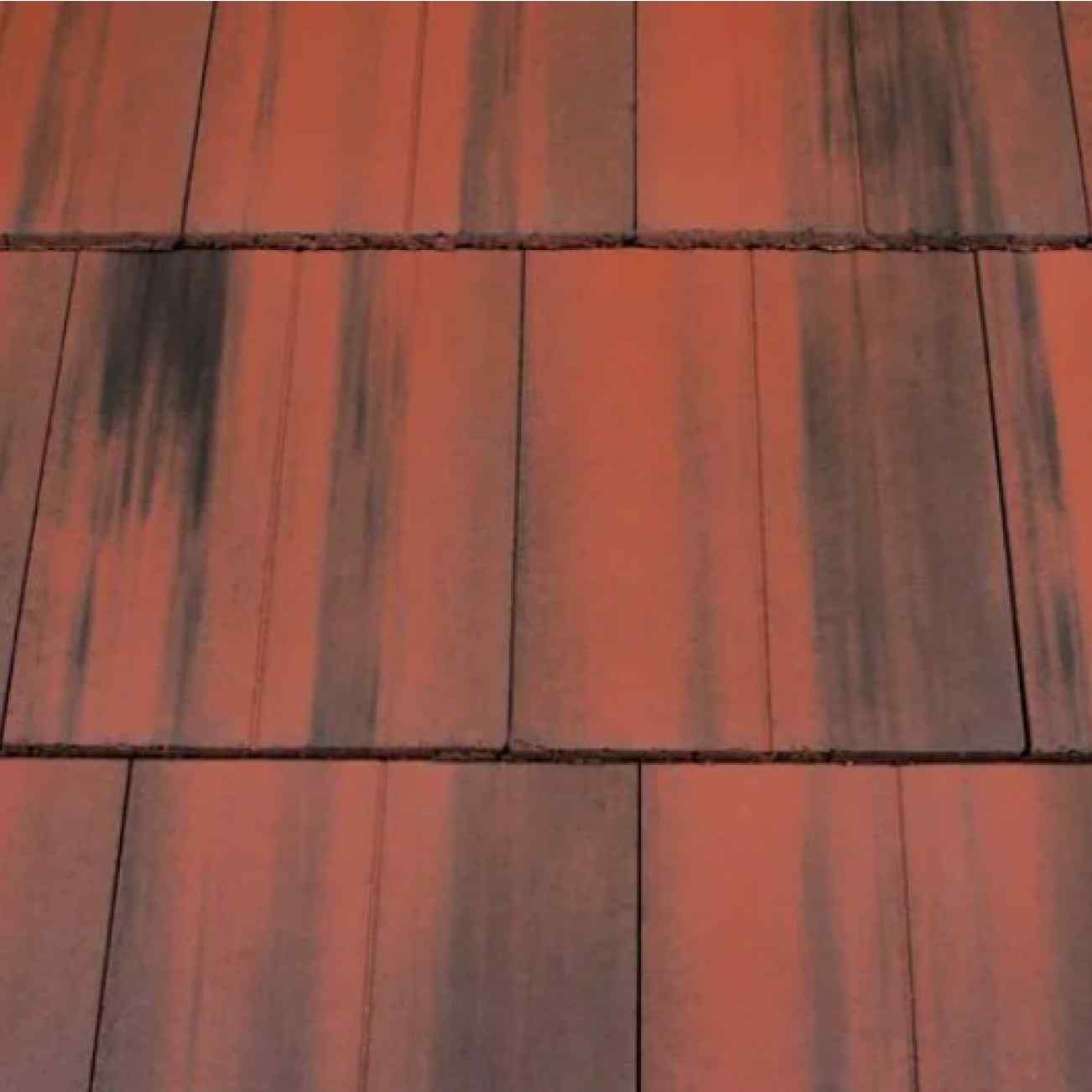

Old English Dark Red
Product Technical Data:
| Size of tile: | 420mm x 330mm |
| Minimum pitch:* | 22.5° (75mm headlap), 17.5° (100mm headlap) |
| Maximum pitch: | 90° |
| Minimum headlap: | 75mm (22.5° and above), 100mm (below 22.5°) |
| Maximum gauge: | 345mm |
| Tile thickness: | 18mm (nominal) |
| Cover width: | 298mm (nominal) |
| Handging length: | 395mm (nominal) |
| Covering capacity (net): | 9.7 tiles/m2 at 75mm headlap, 10.5 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 44kg/m2 (0.43 kN/m2) at 75mm headlap, 47.5kg/m2 (0.47 kN/m2) at 100mm headlap |
| Battens required (net): | 2.9 lin.m/m2 at 75mm headlap, 3.1 lin.m/m2 at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Tile nails: | 45mm x 3.35mm slate nails |
| Fixing Clips: | Eaves, verge and tile clips |
| Authority: | BS EN 490 |
