Ludlow Major Roof Tile
The Ludlow Major is a large format interlocking roof tile with a low profile, ideal for roofing refurbishments. Produced by Marley, the Ludlow Major is strong and resilient and only requires 10 tiles per m2, offering exceptional value for money. The Marley Ludlow Major is a large format roof tile with a classic square profile and is easy to lay. It features simple, but strong lines which exploit the interplay between light and shade, adding visual variety throughout the course of the day.
Product Variants

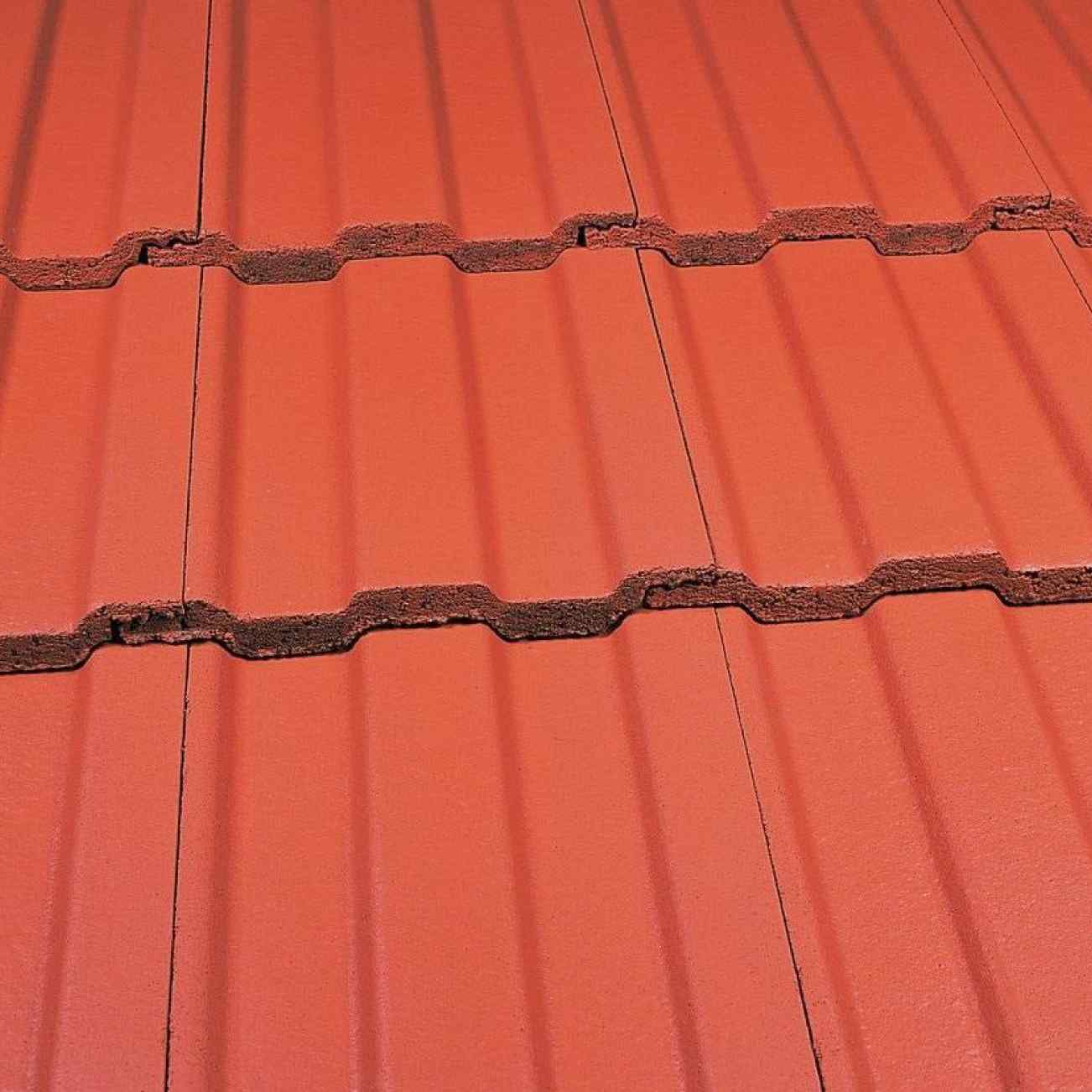

Mosborough Red

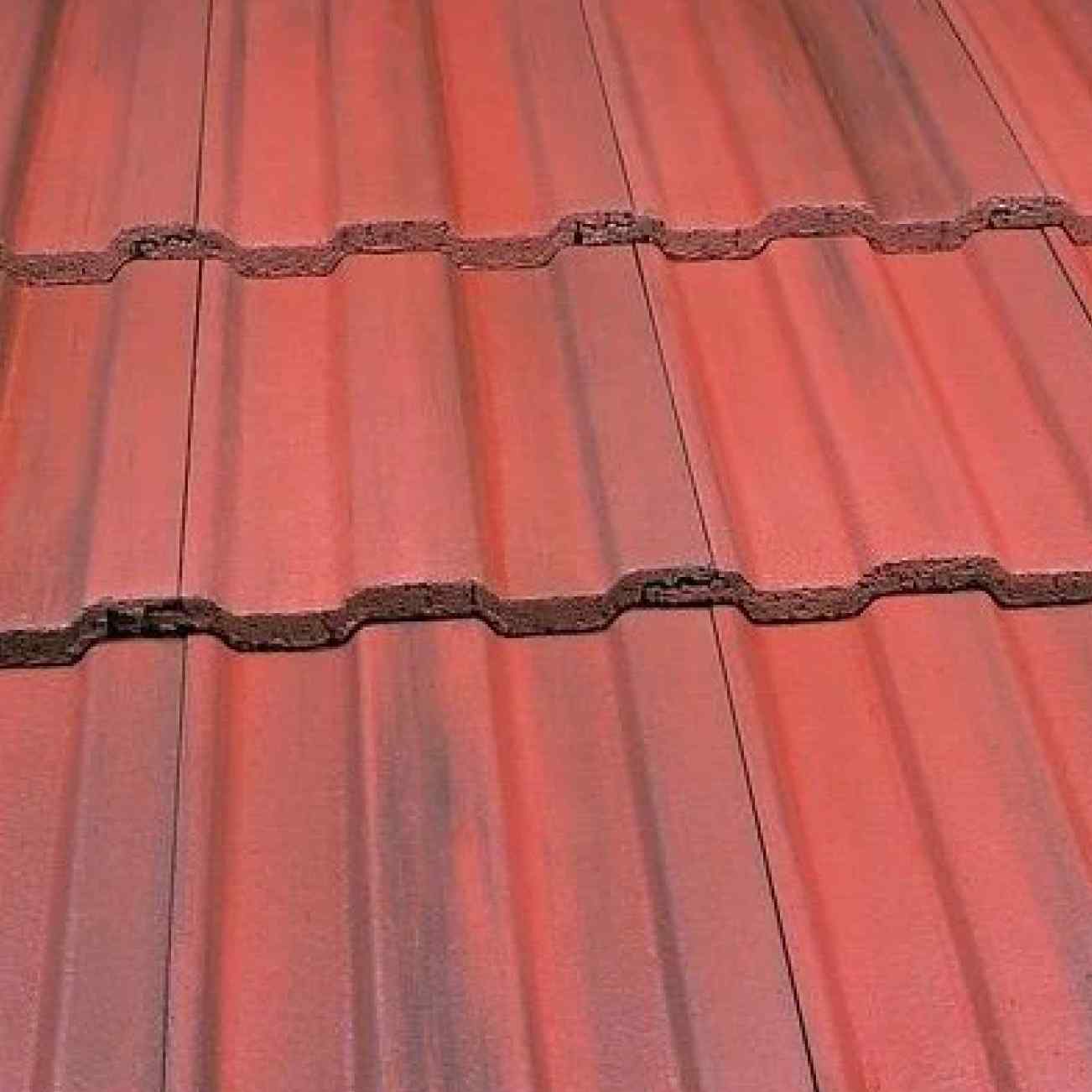

Old English Dark

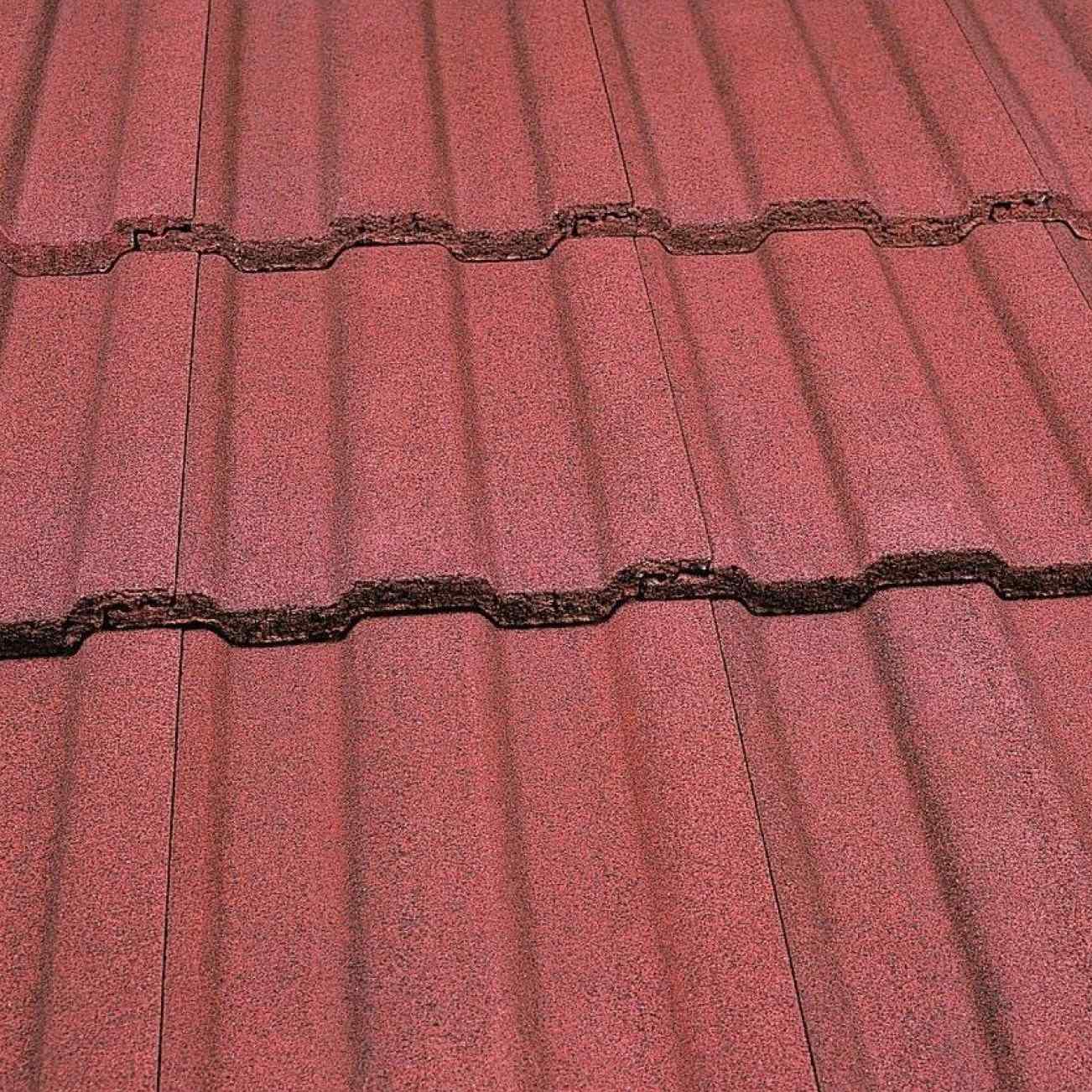

Dark Red

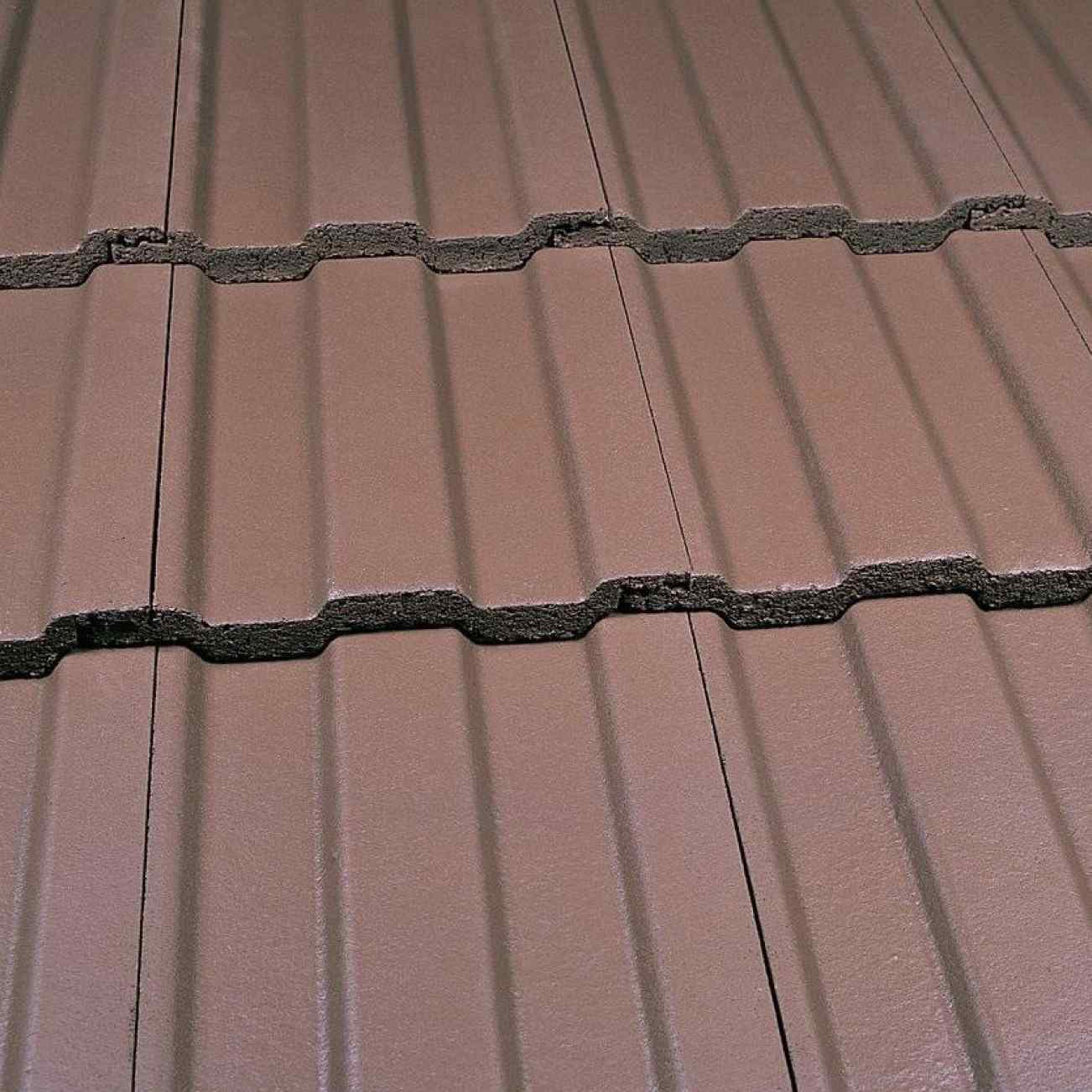

Smooth Brown

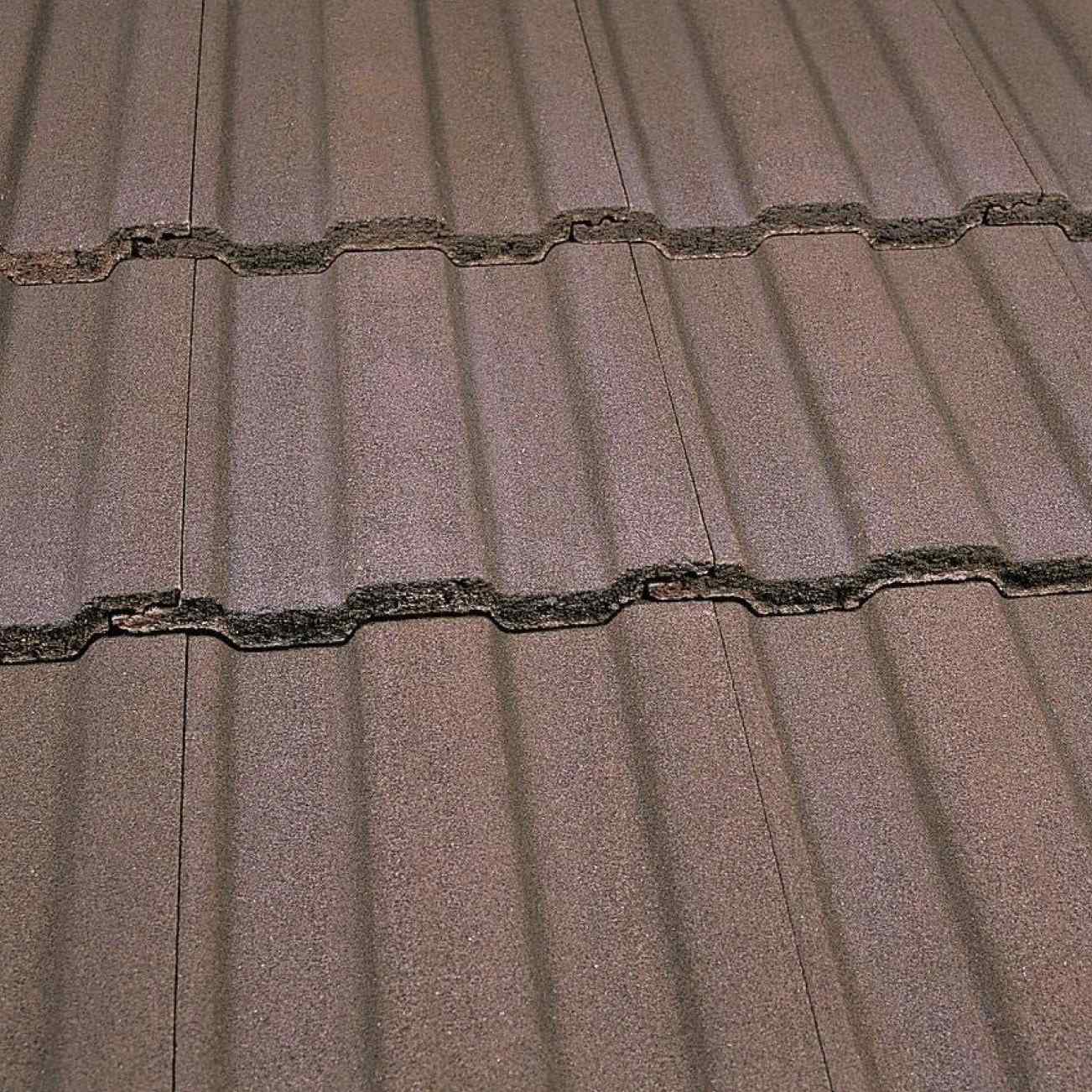

Antique Brown

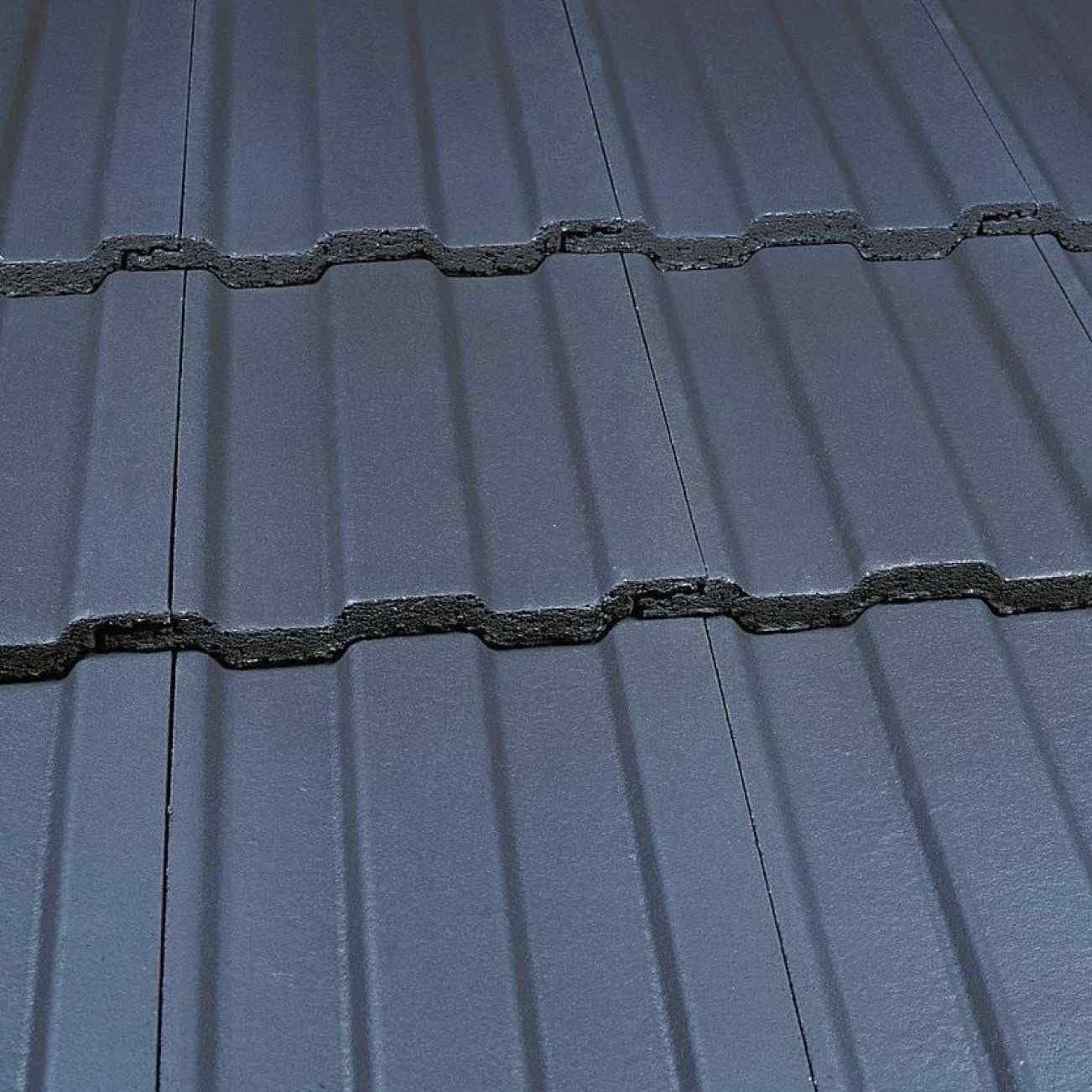

Smooth Grey

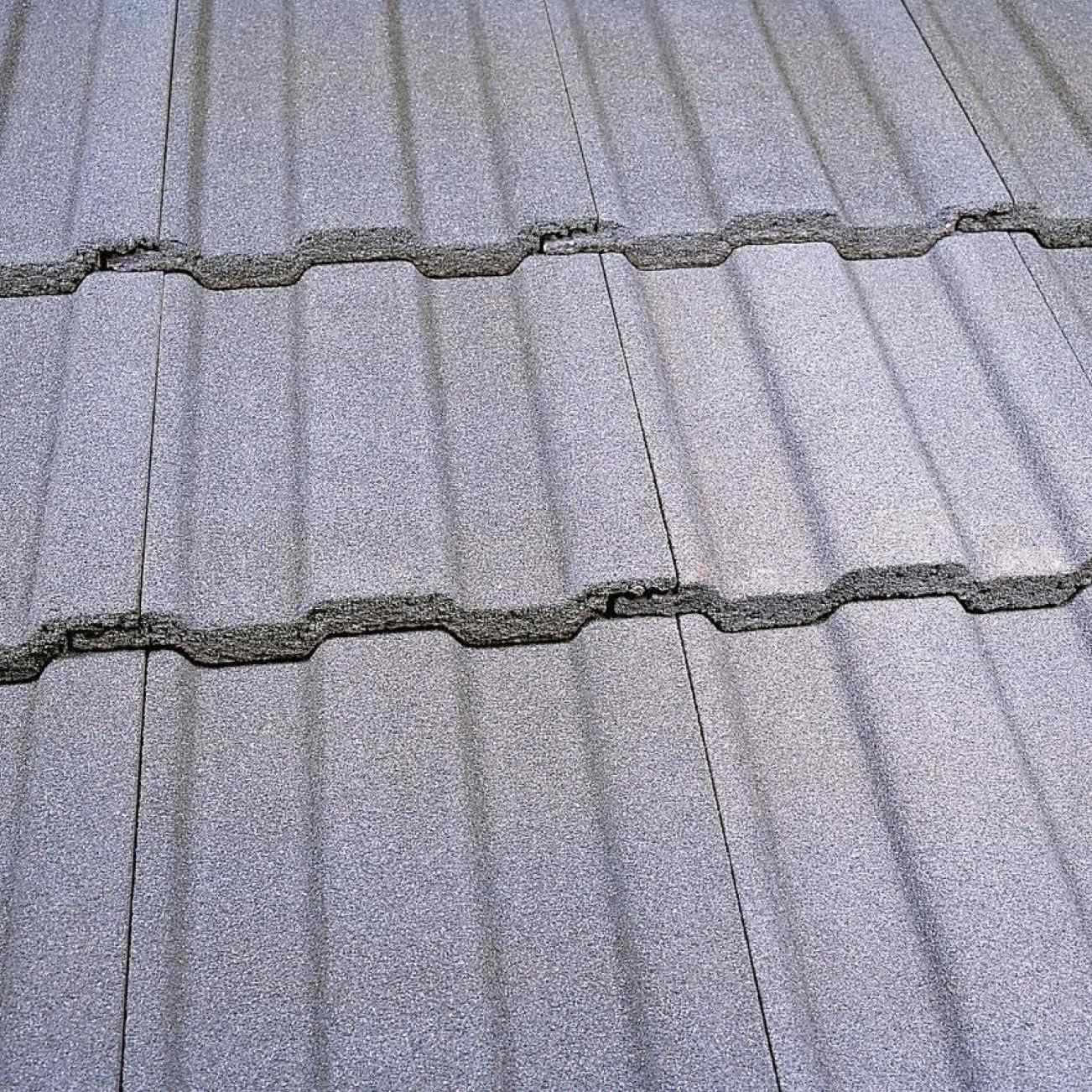

Greystone
Product Technical Data:
| Size of tile: | 420mm x 330mm |
| Minimum pitch (smooth):* | 25° Smooth (75mm headlap), 22.5° Smooth (100mm headlap) |
| Minimum pitch (granular):* | 30° Granular (75mm headlap) |
| Maximum pitch: | 90° |
| Minimum headlap: | 75mm |
| Maximum gauge: | 345mm |
| Body thickness: | 25mm (nominal) |
| Overall depth: | 45mm |
| Cover width: | 295mm (nominal) |
| Handing length: | 399mm (nominal) |
| Covering capacity (net): | 9.8 tiles/m2 at 75mm headlap, 10.6 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 45kg/m2 (0.44 kN/m2) at 75mm headlap, 49kg/m2 (0.48 kN/m2) at 100mm headlap |
| Battens required (net): | 2.9 lin.m/m2 at 75mm headlap, 3.1 lin.m/m2at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Tile nails: | 55mm x 3.35mm |
| Fixing Clips: | Eaves, verge and tile clips |
| Authority: | BS EN 490 |
