Ludlow Plus Roof Tile
The Ludlow Plus is an economic interlocking roof tile with a low profile, ideal for roofing refurbishments. Produced by Marley, the Ludlow Plus is a strong and resilient concrete tile and offers exceptional value for money.
Product Variants

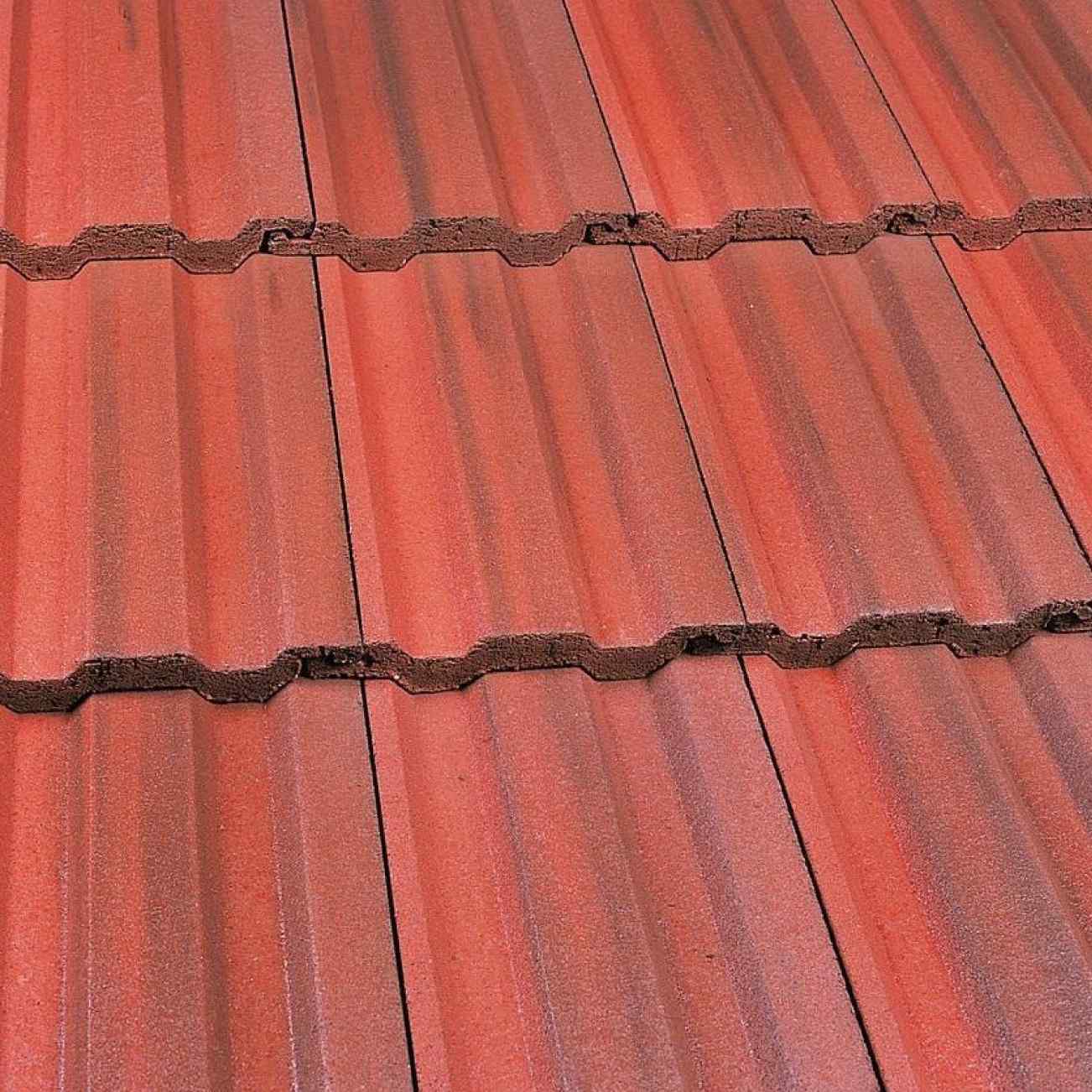

Old English Dark

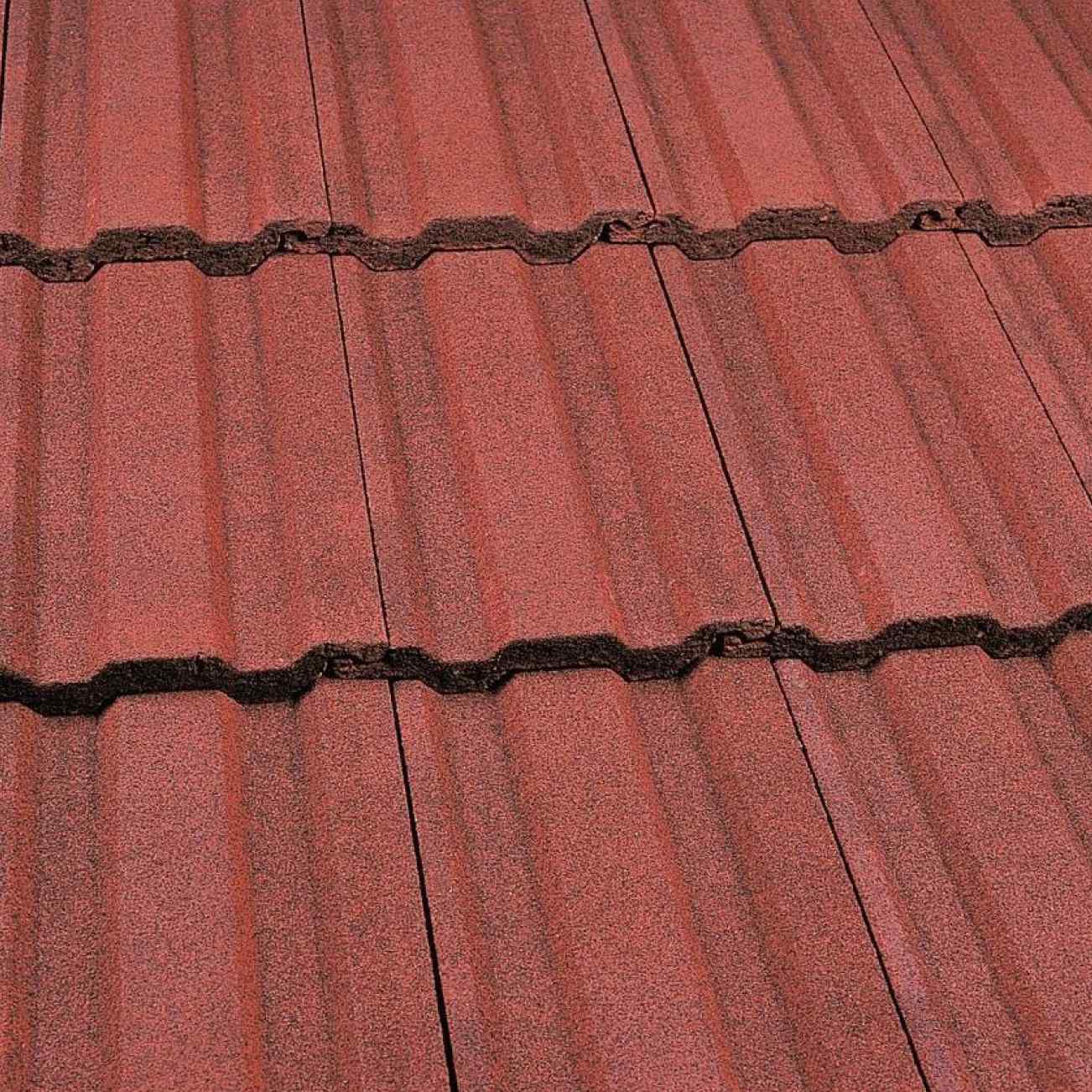

Dark Red

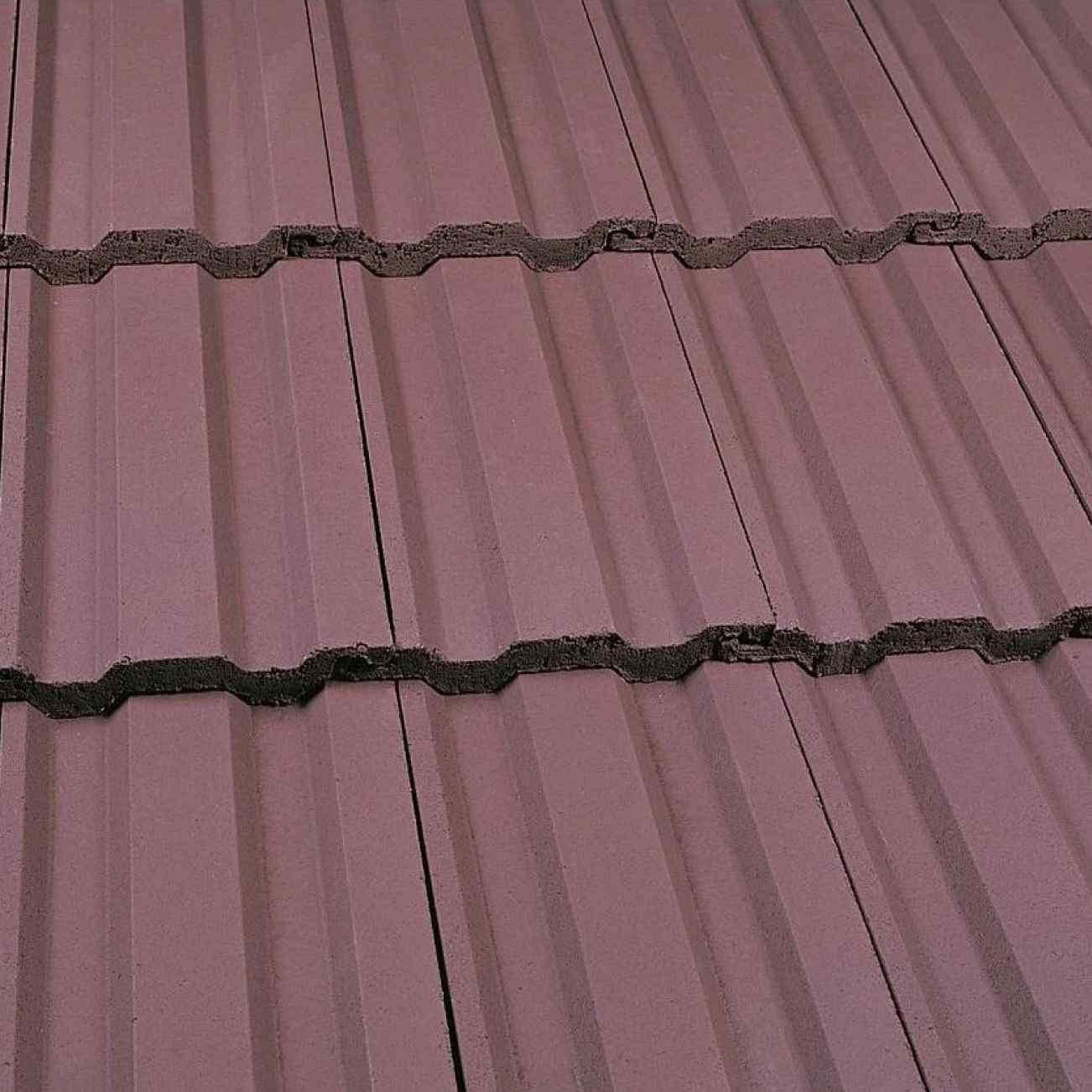

Smooth Brown

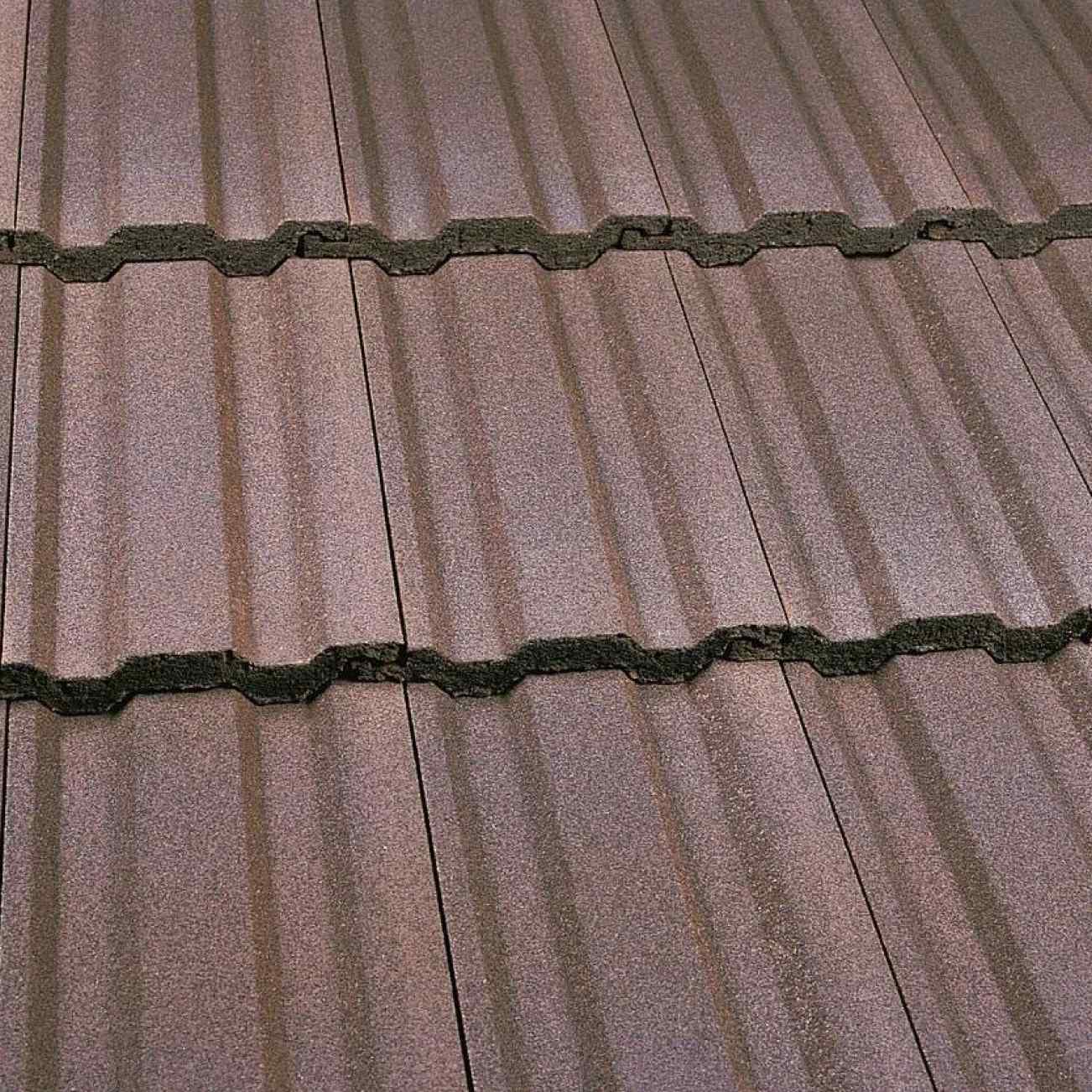

Antique Brown

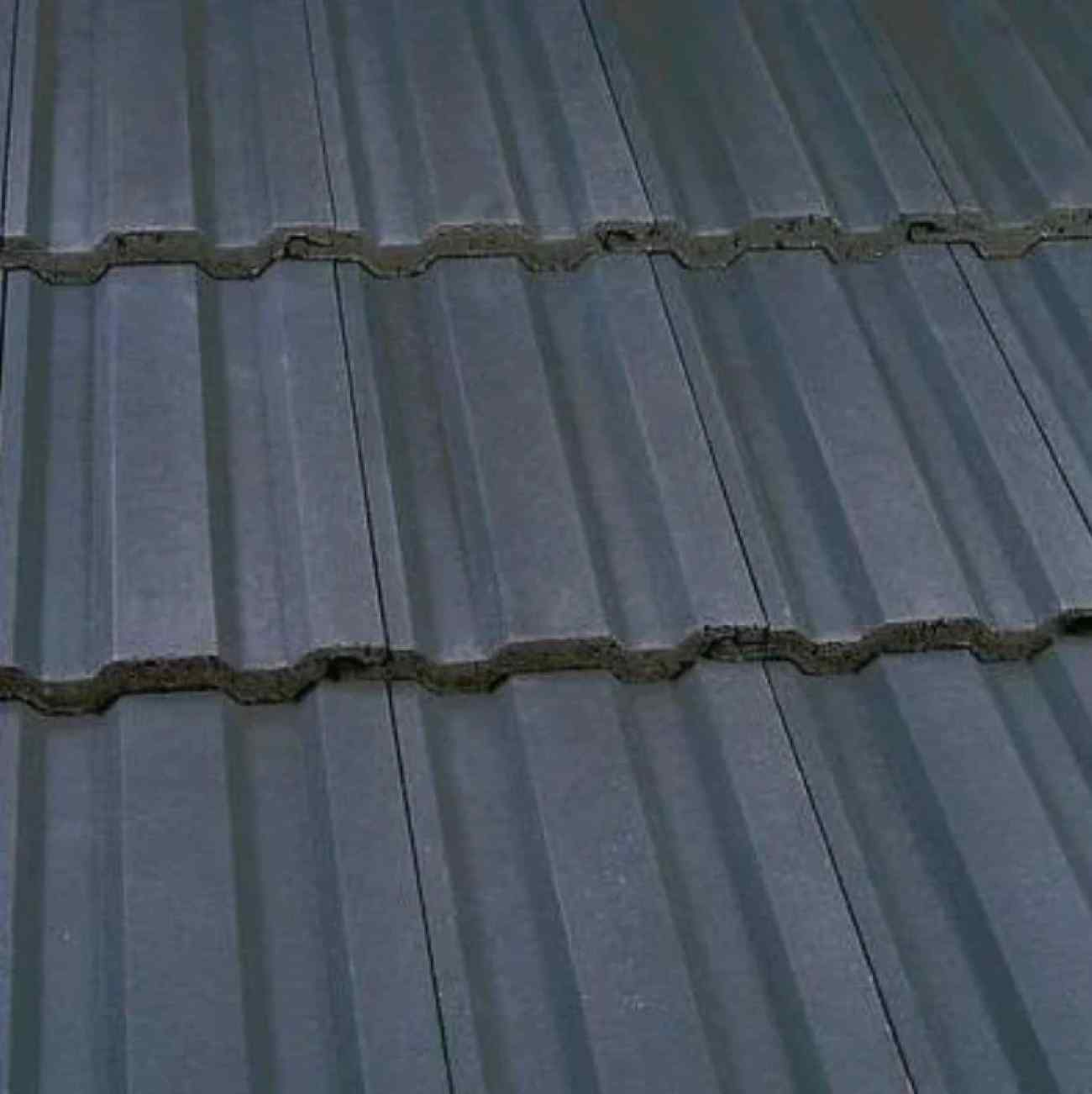

Smooth Grey

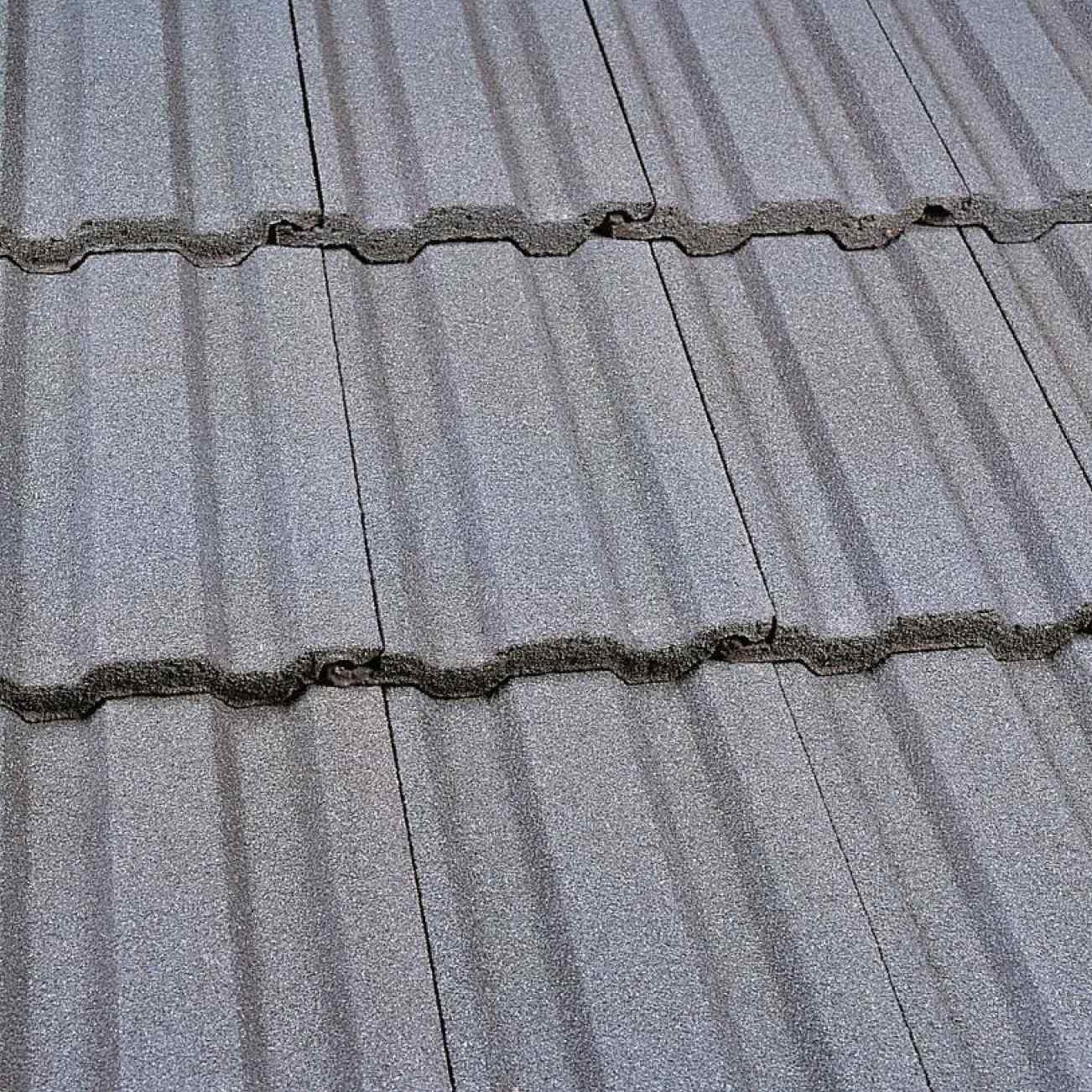

Greystone
Product Technical Data:
| Size of tile: | 387mm x 229mm |
| Minimum pitch (smooth):* | 25° Smooth (75mm headlap), 22.5° Smooth (100mm headlap) |
| Minimum pitch (granular):* | 30° Granular (75mm headlap) |
| Maximum pitch: | 90° |
| Minimum headlap: | 75mm |
| Maximum gauge: | 312mm |
| Body thickness: | 25mm (nominal) |
| Overall depth: | 45mm |
| Cover width: | 204mm (nominal) |
| Handing length: | 361mm (nominal) |
| Covering capacity (net): | 15.7 tiles/m2 at 75mm headlap, 17.1 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 47kg/m2 (0.46 kN/m2) at 75mm headlap, 51kg/m2 (0.50 kN/m2) at 100mm headlap |
| Battens required (net): | 3.2 lin.m/m2 at 75mm headlap, 3.5 lin.m/m2 at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Tile nails: | 55mm x 3.35mm |
| Fixing Clips: | Eaves, verge and tile clips |
| Authority: | BS EN 490 |
