Mendip 12.5 Roof Tile
The NEW Marley Mendip Low Pitch roof tile has a double pantile design with a slight curve in the profile to give a visually pleasing appearance. The Marley Mendip is an ideal roof tile for low pitch extensions, new builds and home renovations. The new Mendip 12.5 concrete interlocking tile can perform at low pitches which makes it ideal for one-storey extensions and refurbishments. 12.5° - 44° pitch with a rafter length up to 6m will require a 100mm headlap.
Product Variants

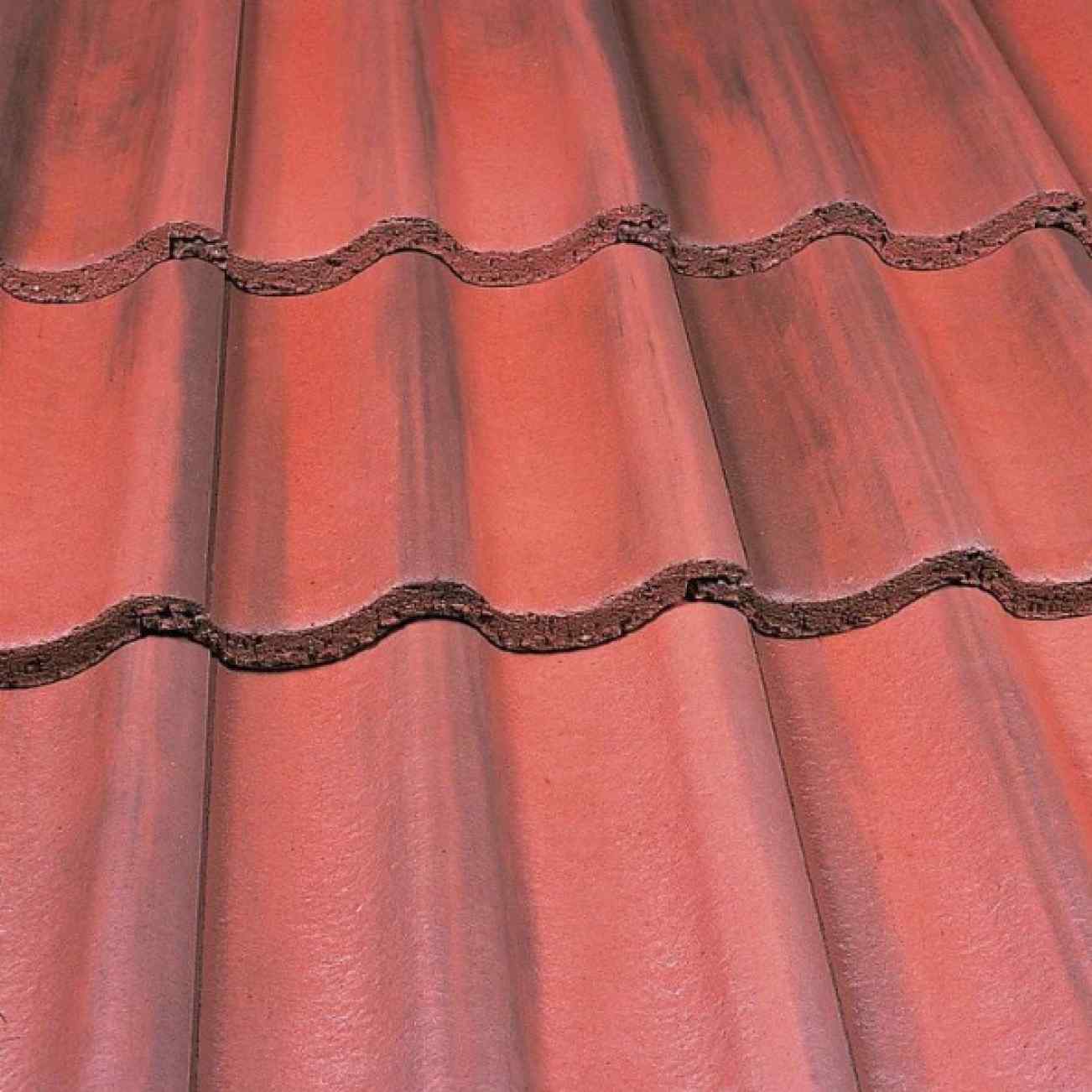

Old English Dark Red

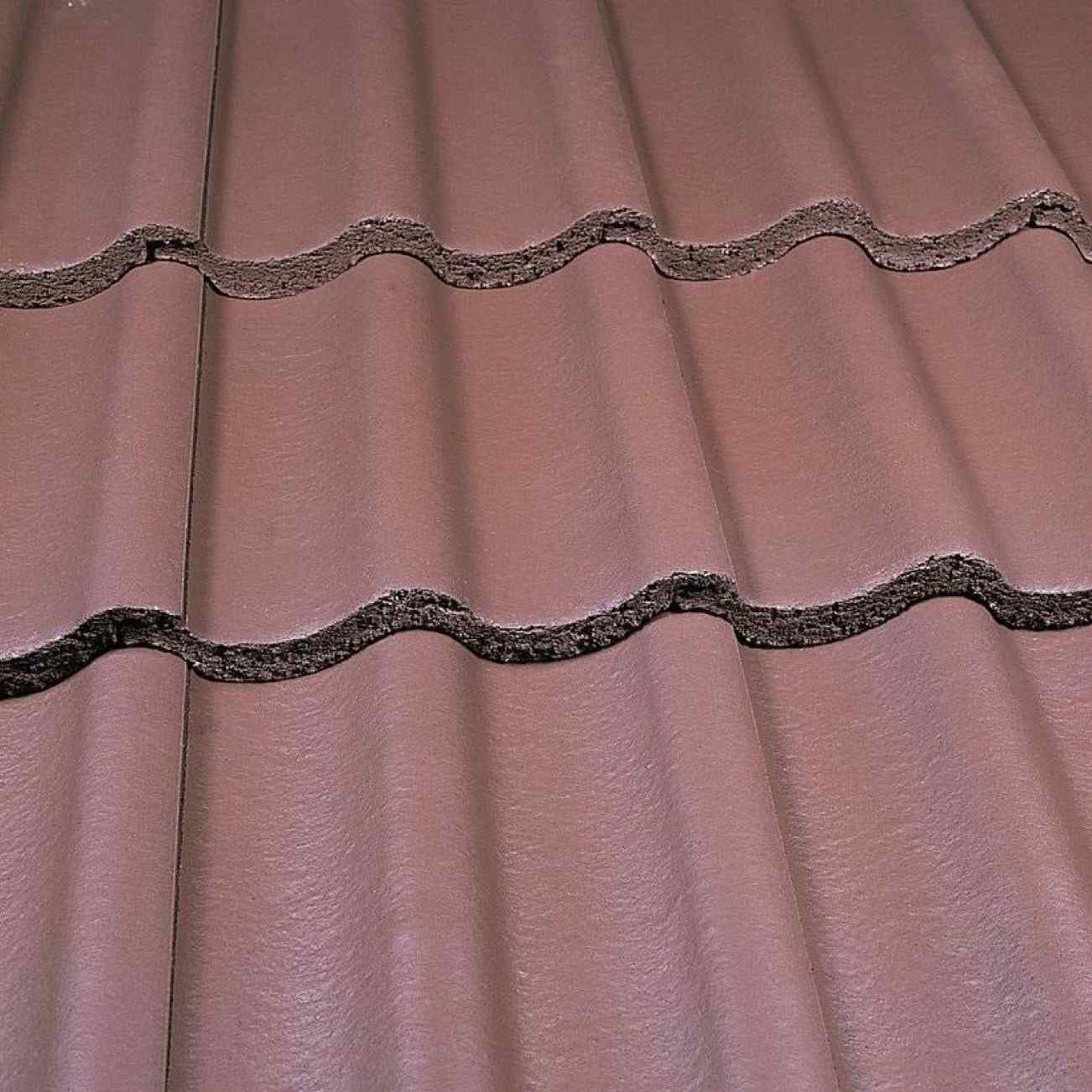

Smooth Brown

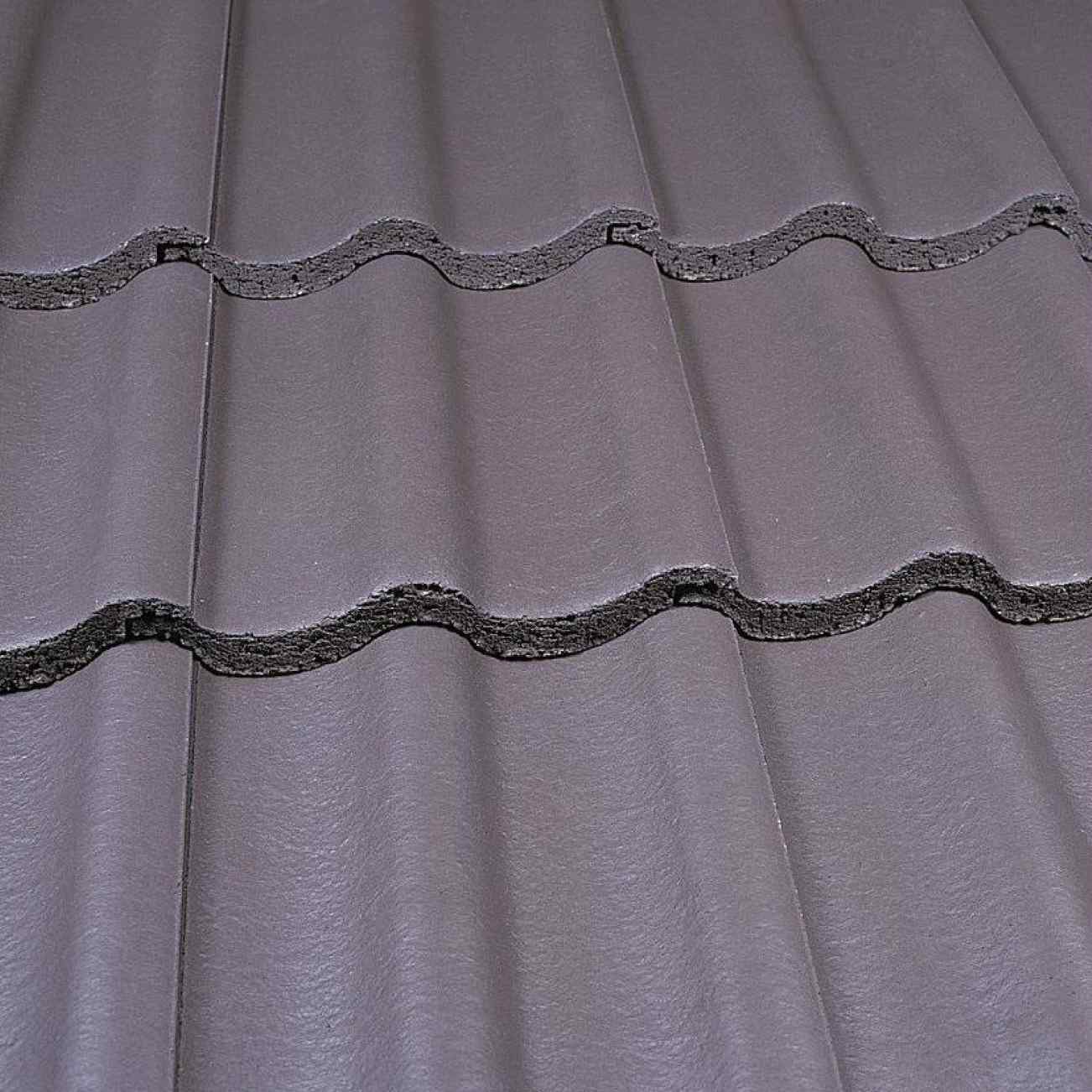

Smooth Grey
Product Technical Data:
| Size of tile: | 420mm x 330mm |
| Minimum pitch*: | 12.5° Smooth (100mm headlap, up to 6m rafters) |
| Maximum pitch: | 44° |
| Minimum headlap: | 100mm |
| Maximum gauge: | 320mm |
| Body thickness: | 27mm (nominal) |
| Overall depth: | 59mm |
| Cover width: | 298mm (nominal) |
| Handging length: | 397mm (nominal) |
| Covering capacity (net): | 10.5 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 49kg/m2 (0.48 kN/m2) at 100mm headlap |
| Battens required (net): | 3.1 lin.m/m2 at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Fixing Clips: | Eaves, verge and tile clips, Mendip headclip, SoloFix |
| Authority: | BS EN 490 |
