Plain Roof Tile
A cross-cambered concrete plain tile with a traditional design, offering an economical alternative to a clay plain tile. The traditional, authentic design of the Marley plain tile will give your project an outstanding look at a fraction of the cost of clay plain tiles.
Product Variants

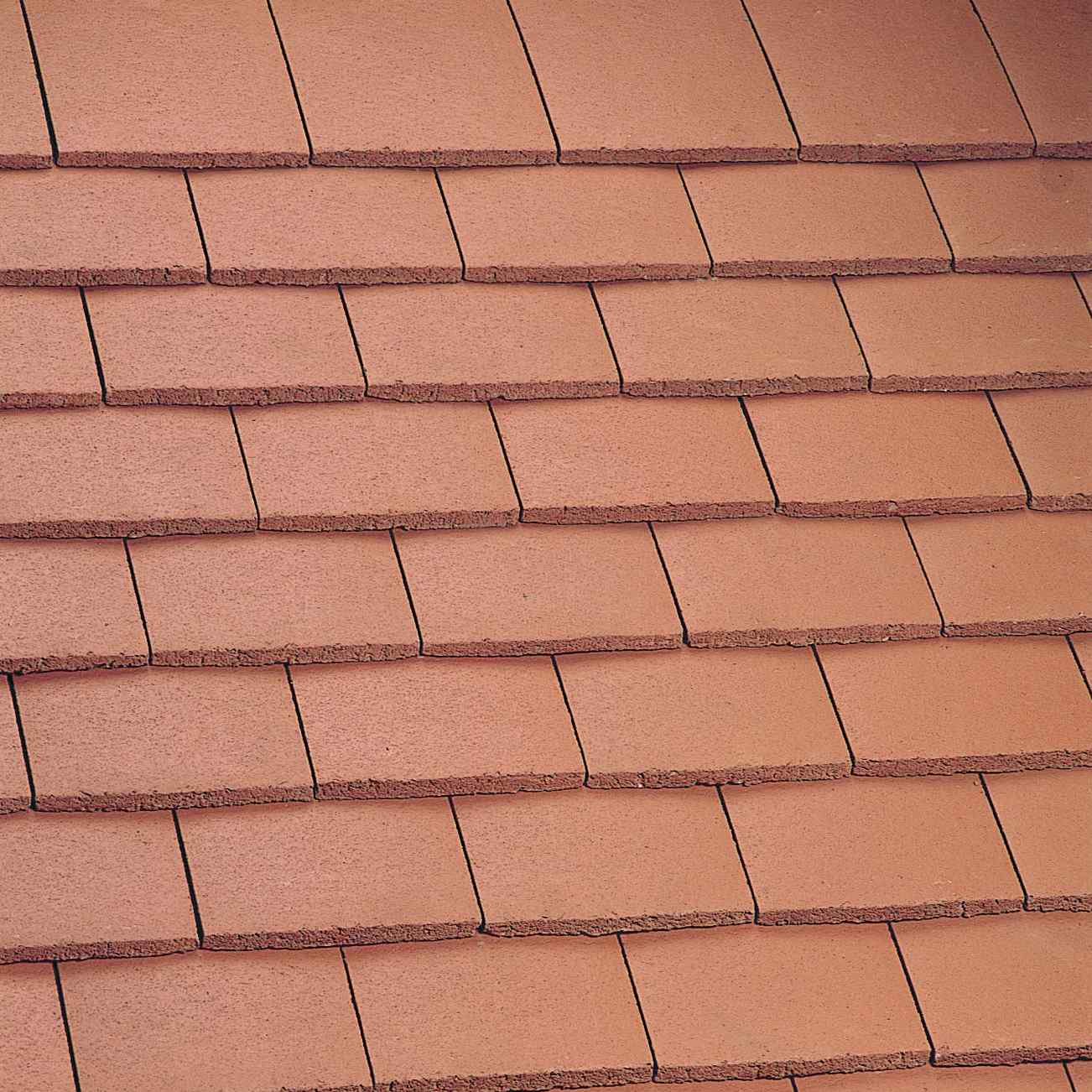

Mosborough Red

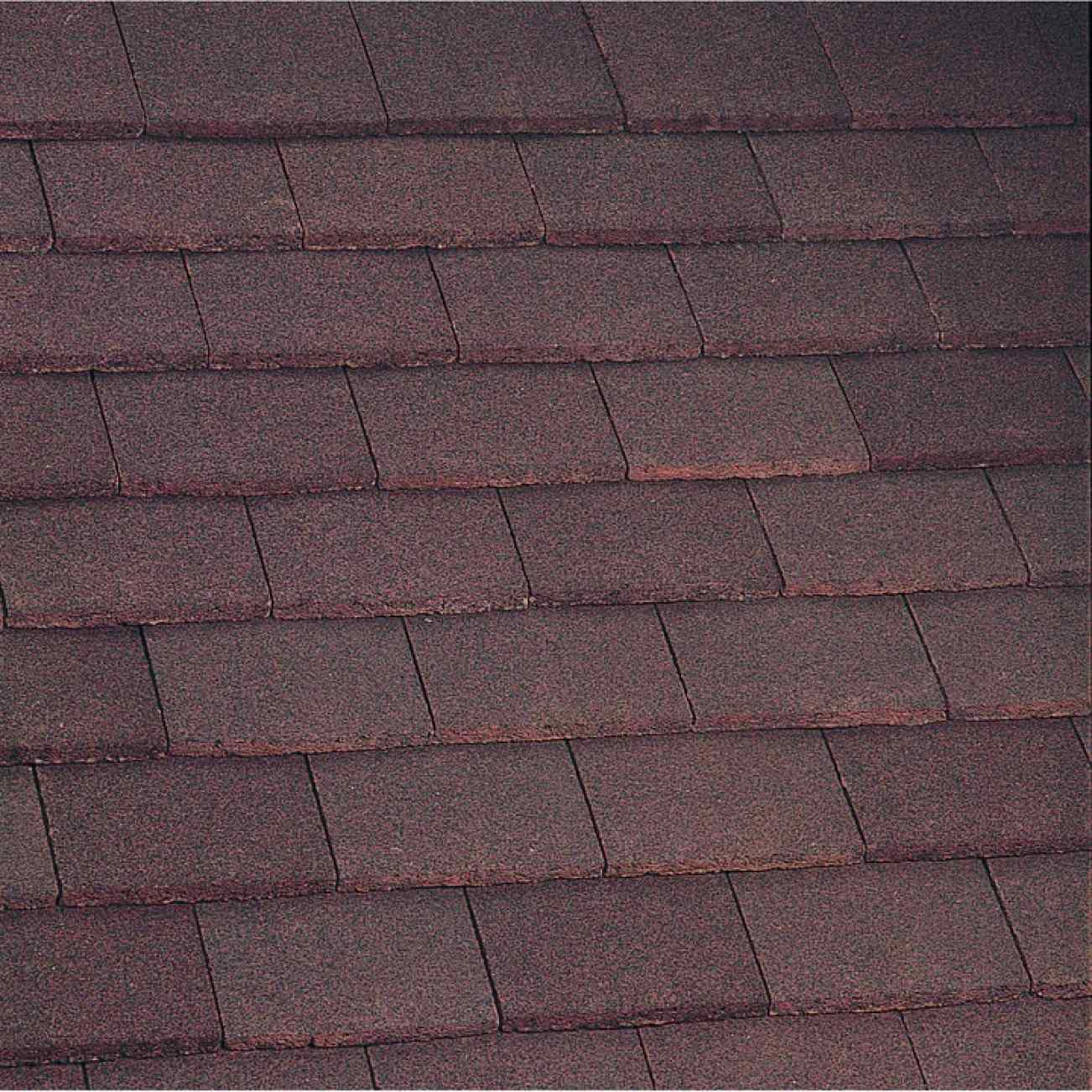

Natural Red

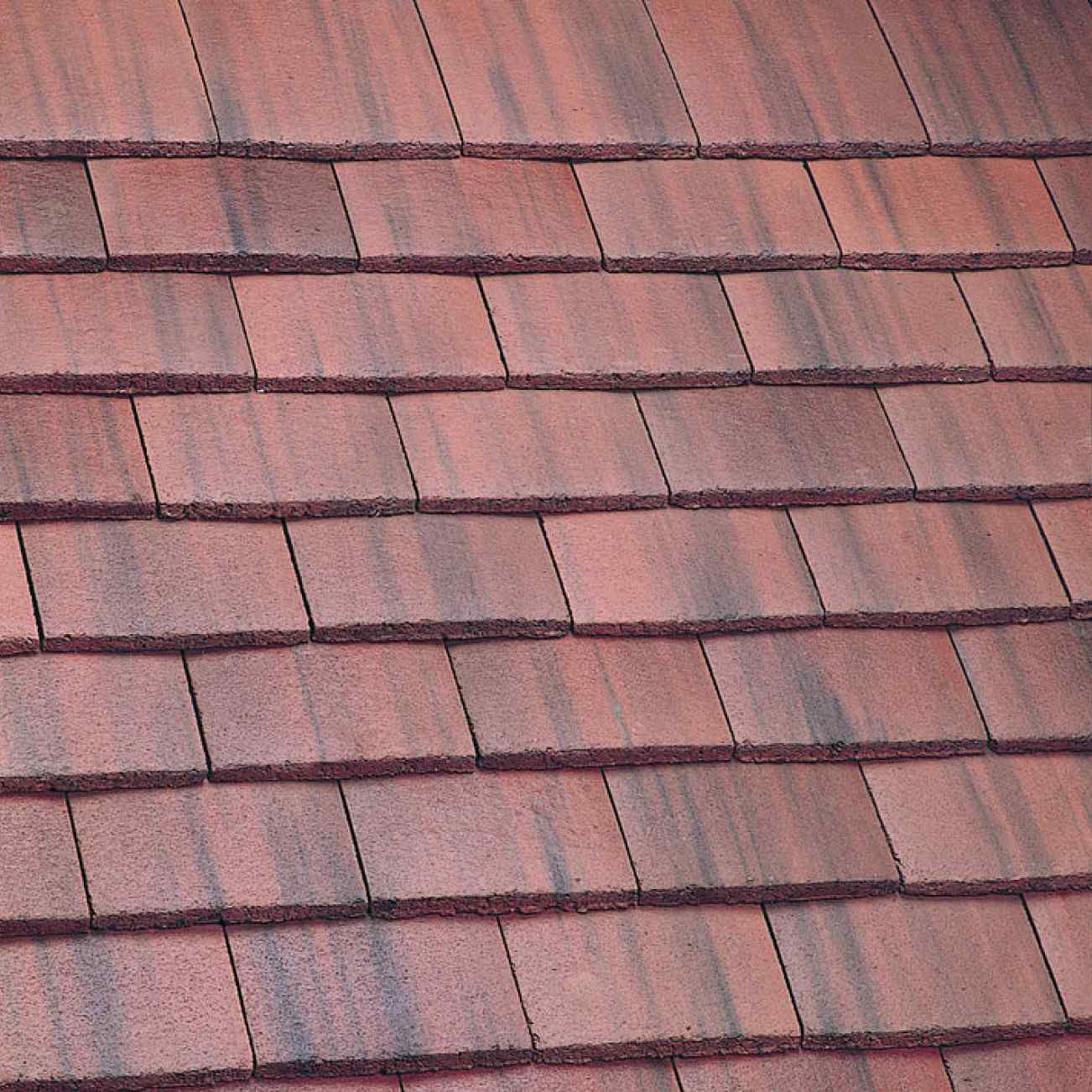

Old English Dark

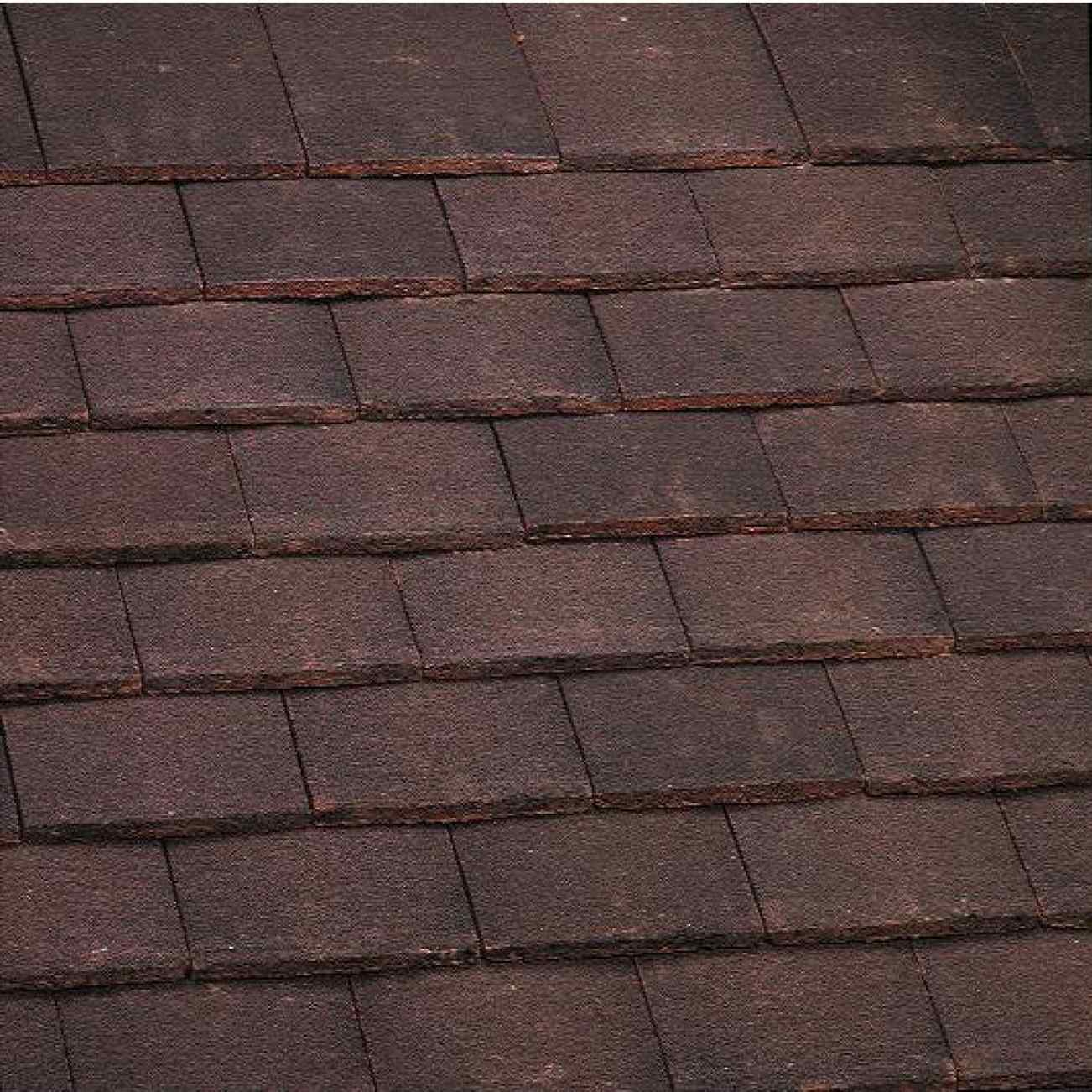

Dark Red

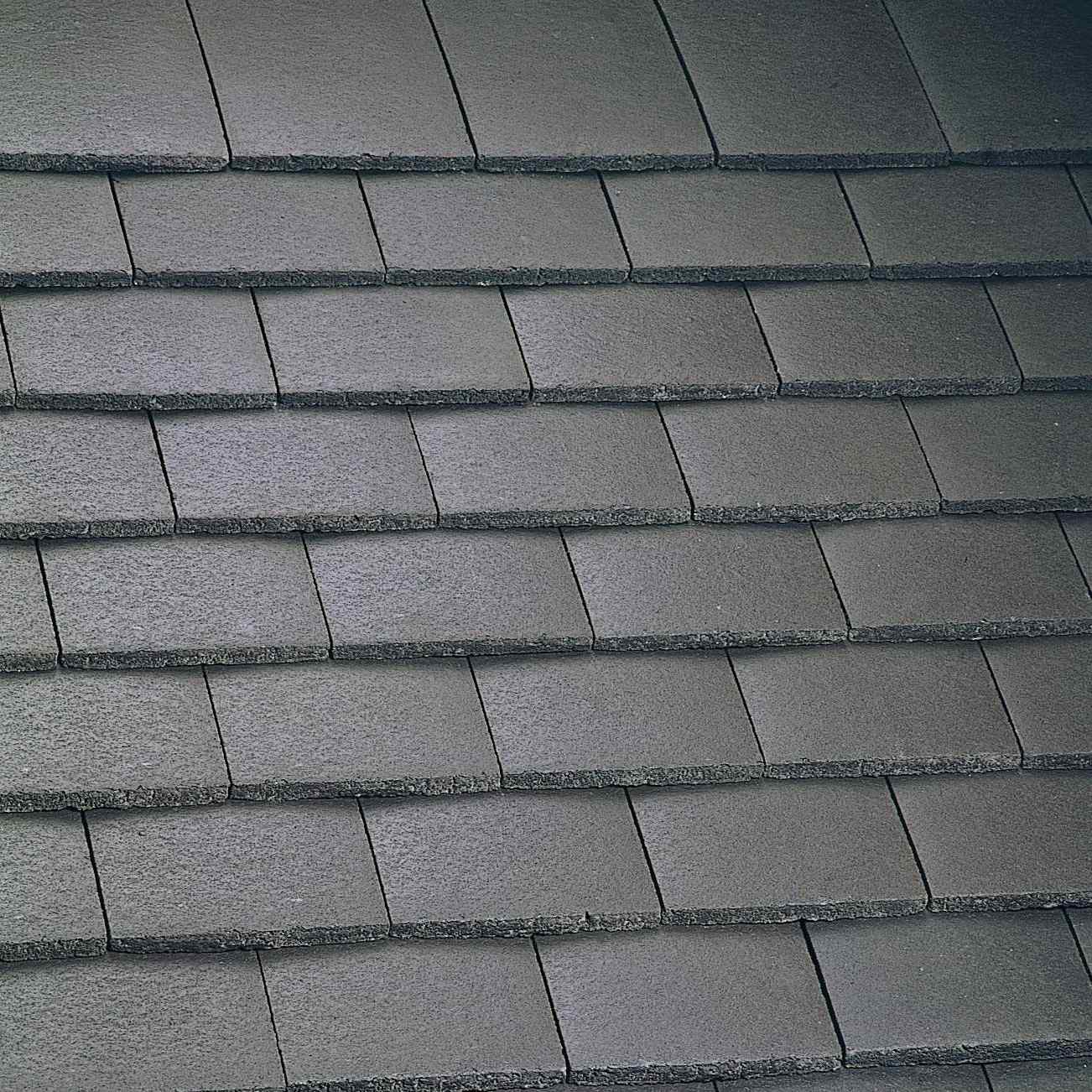

Smooth Brown

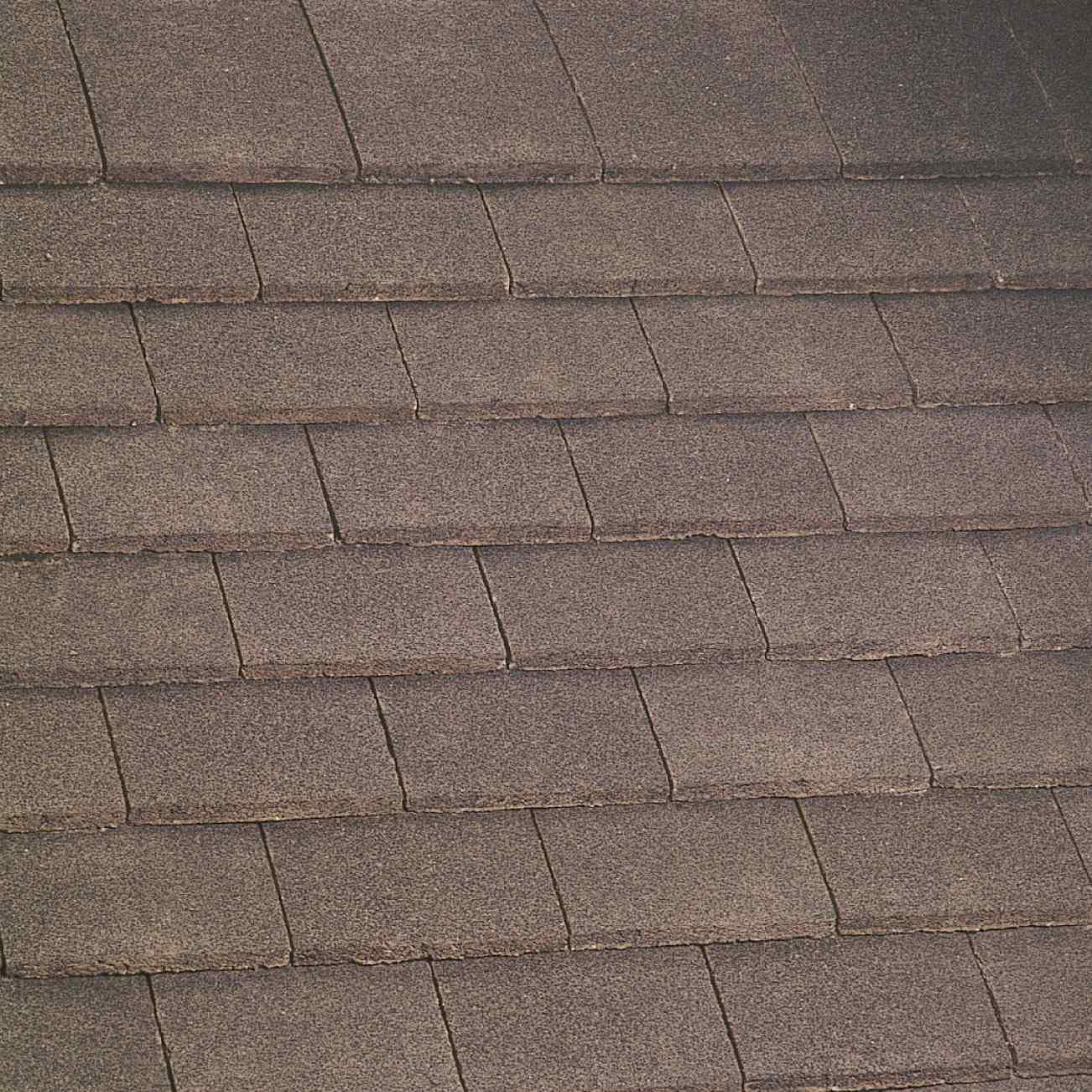

Antique Brown

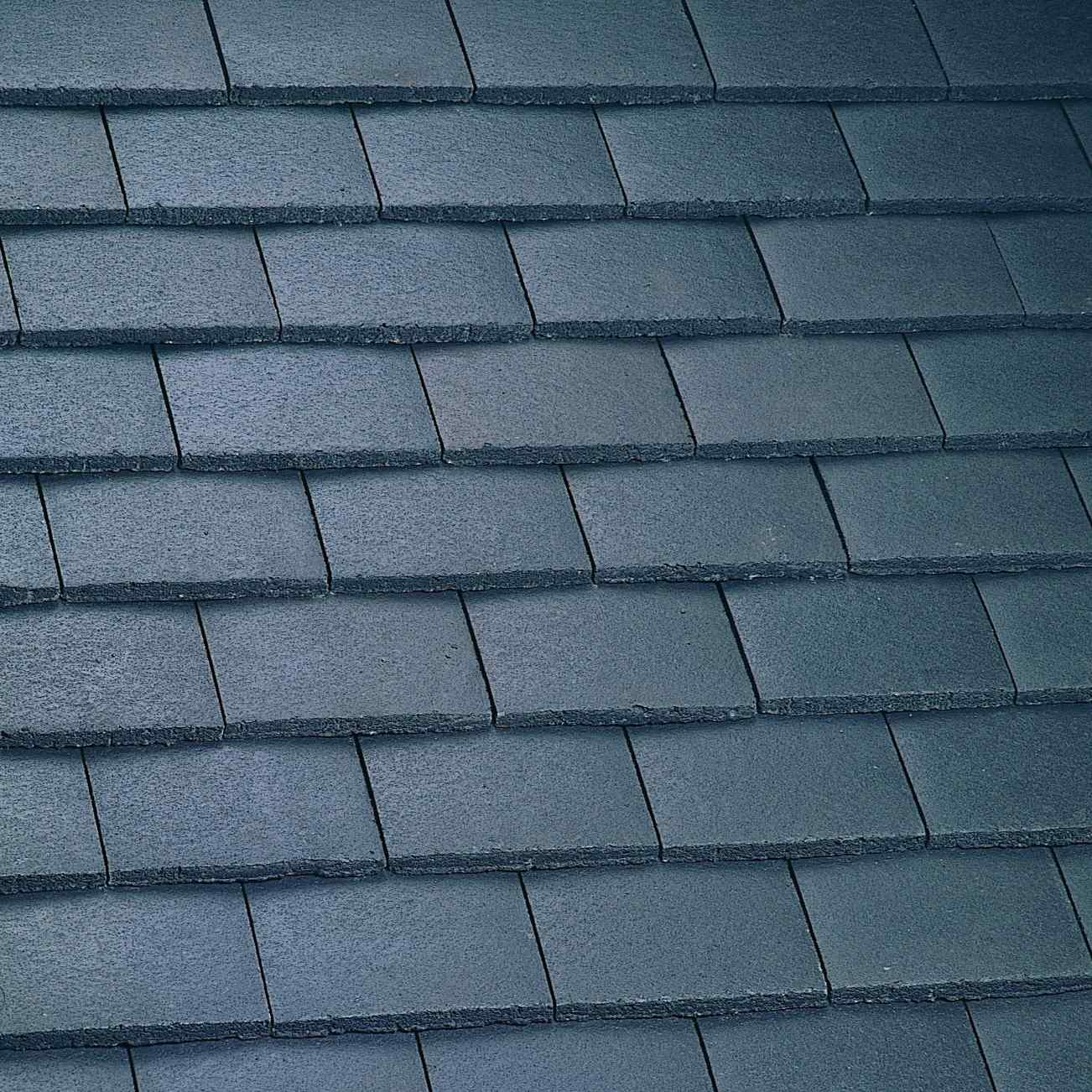

Smooth Grey
Greystone

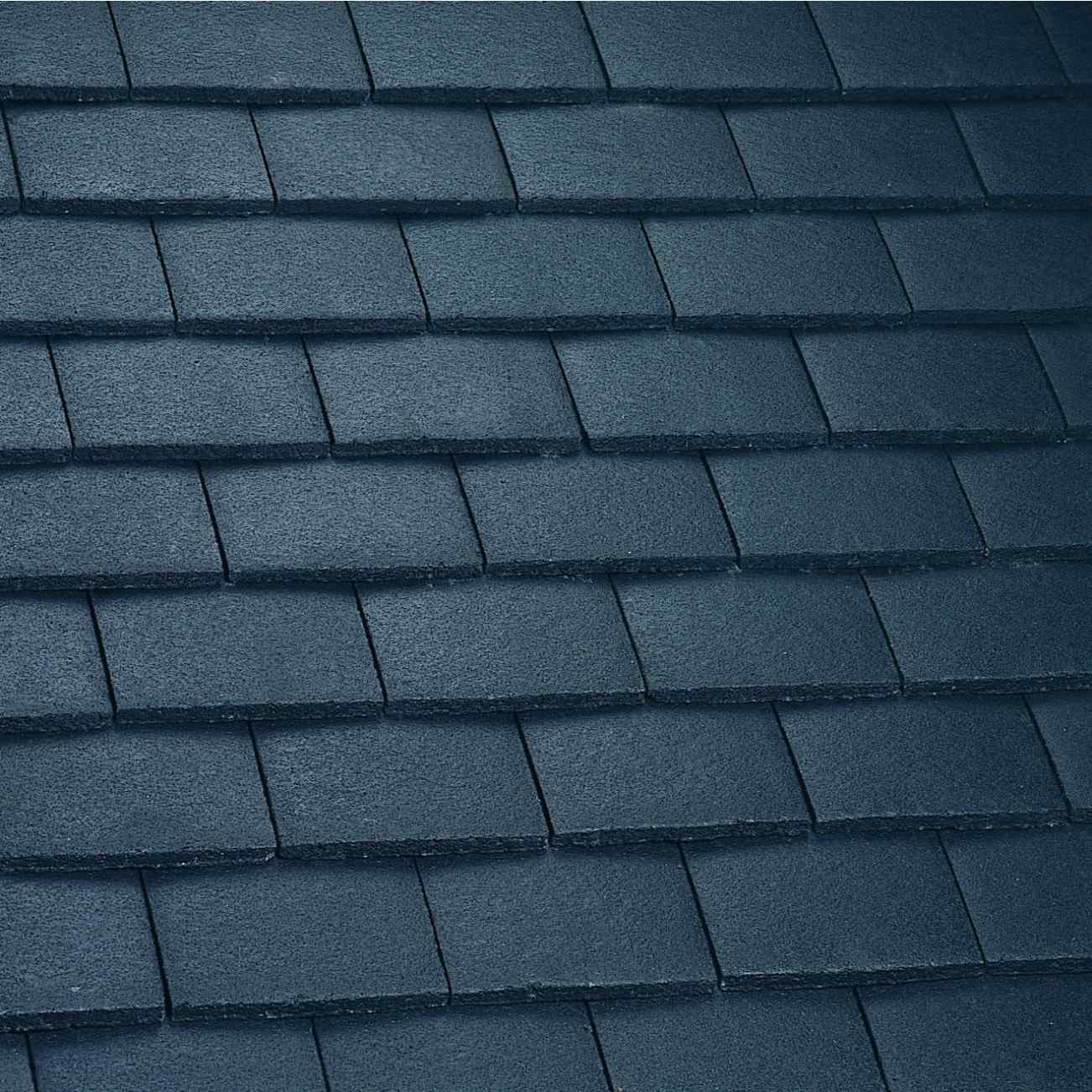

Anthracite
Product Technical Data:
| Size of tile: | 267mm x 168mm |
| Minimum pitch:* | 35° |
| Maximum pitch: | 90° |
| Minimum headlap: | 65mm (roof), 37.5mm (vertical) |
| Maximum gauge: | 100mm (roof), 115mm (vertical) |
| Tile thickness: | 12mm (nominal) |
| Cover width: | 168mm (nominal) |
| Covering capacity (net): | 60 tiles/m2 at 100mm gauge (roof), 53 tiles/m2 at 115mm gauge (vertical) |
| Weight of tiling (approx.): | 73.8kg/m2 (0.72 kN/m2) at 100mm gauge (roof), 58kg/m2 (0.57 kN/m2) at 115mm gauge (vertical) |
| Battens required (net): | 10.0 lin.m/m2 at 100mm gauge (roof), 8.7 lin.m/m2 at 115mm gauge (vertical) |
| Batten size recommended: | 38mm x 25mm for rafters/supports not exceeding 600mm centres (fixed to BS 5534) |
| Tile nails: | 38mm x 2.65mm |
| Authority: | BS EN 490 |
