Wessex Roof Tile
The Marley Wessex is a simple, large format, low pitch roof tile solution. Featuring a subtle square profile which offers a fantastic minimalist style for a low pitched roof. Designed to shed water efficiently, the Marley Wessex is the perfect solution to avoid a large profile tile on a low pitched roof. The Marley Wessex has been a popular choice for uses on roof pitches as low as 15° and comes in two colours: Smooth Grey or Smooth Brown.
Product Variants

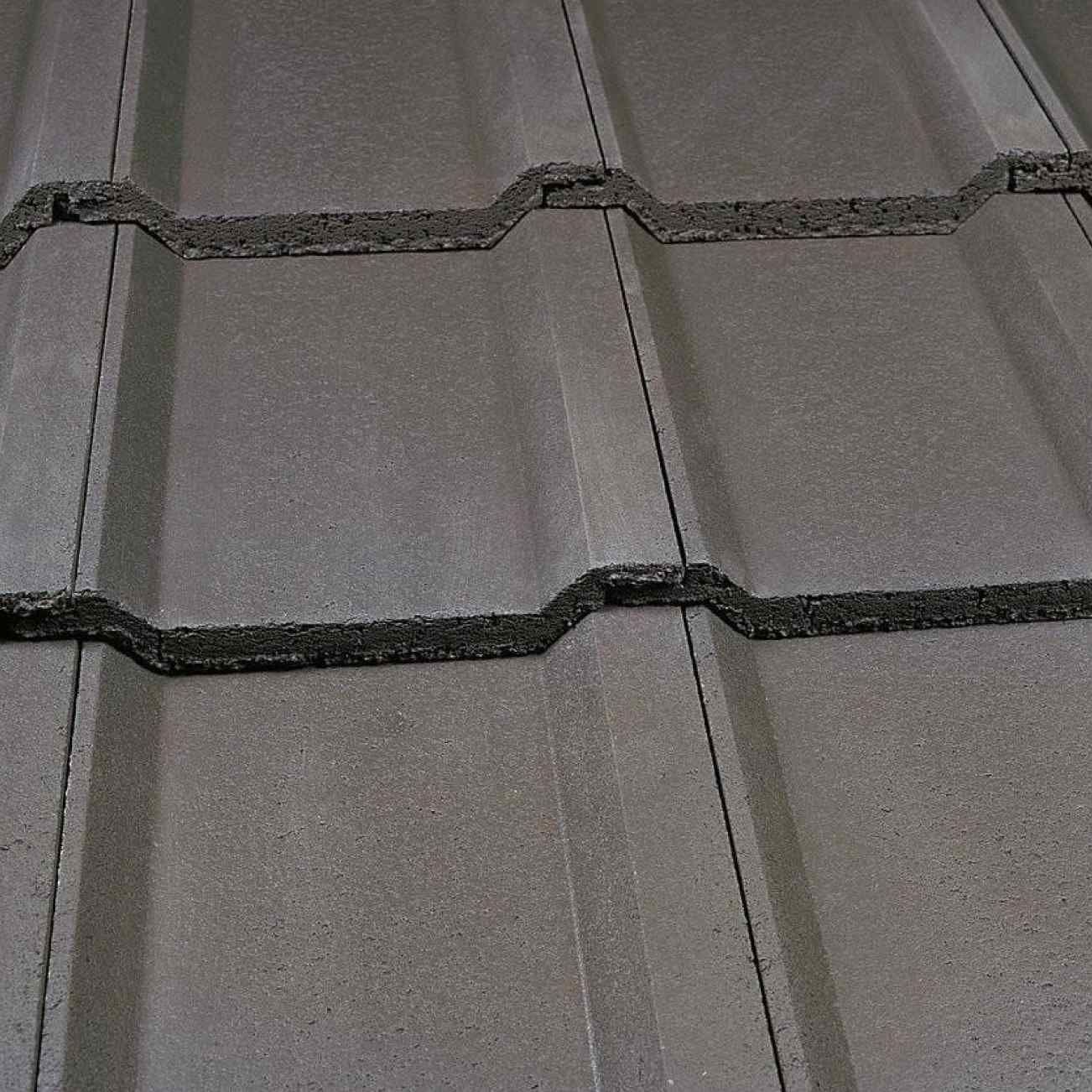

Smooth Grey
Smooth Brown
Product Technical Data:
| Size of tile: | 420mm x 330mm |
| Minimum pitch*: | 15° |
| Maximum pitch: | 44° |
| Minimum headlap: | 75mm |
| Maximum gauge: | 345mm |
| Body thickness: | 29mm (nominal) |
| Overall depth: | 56mm |
| Cover width: | 298mm (nominal) |
| Handing length: | 403mm (nominal) |
| Covering capacity (net): | 9.7 tiles/m2 at 75mm headlap, 10.5 tiles/m2 at 100mm headlap |
| Weight of tiling (approx.): | 50kg/m2(0.43 kN/m2) at 75mm headlap, 53kg/m2 (0.46 kN/m2) at 100mm headlap |
| Battens required (net): | 2.9 lin.m/m2 at 75mm headlap, 3.1 lin.m/m2 at 100mm headlap |
| Batten size recommended: | 38mm or 50mm x 25mm for rafters/supports not exceeding 450mm or 600mm centres (fixed to BS 5534) |
| Fixing Clips: | Eaves, verge and tile clips |
| Authority: | BS EN 490 |
